production and installation of food industry machines, equipment and technological lines

Our team with state of the art technology and expertise aims to make our customers’ processes efficient and effective.



https://unimatik.hu/wp-content/uploads/2023/11/teljes-technologiai-folyamatok-a-tervezestol-a-beuzemelesig.png

Ensure the quality of your products and the reliability of your process with the highest quality machinery and equipment that fully meets industry standards. Choose us and trust that your business will become more efficient and increase your production capacity.

Pet food production

Sweet corn processing

Green pea processing

Green beans processing

Cucumber processing

Jam, Fruit pith processing

Cherry, plum processing

Other vegetables

  • Info

    Carrot, zucchini, pepper, eggplant, beetroot, cabbage, pumpkin, etc.

Snail processing

Milk & cheese processing

Other food processing

All machines

Packaging machines

  Magnetic depalletizer:

The depalletizer is located in front of the technological line, where it is placed. The depalletizing machine breaks down the unit load of the filled cylindrical containers and places them on a buffer table. The metal box is placed on the buffer table by a magnetic head. The frame of the depalletizing buffer table is made of bent stainless steel sheet with plastic tape. The frame structure of the magnetic head is also made of stainless steel, on which the carriage moves the magnetic head. The magnetic head is moved up and down by a pneumatic cylinder. We solve the lifting and lowering of the pallet with a chain hoist. The empty pallet is picked up by a roller track and collected separately. The equipment can handle pallets of different sizes. The machine is completely made of stainless steel. The machine can work in both automatic and manual mode. The machine is equipped with a PLC automation controller.

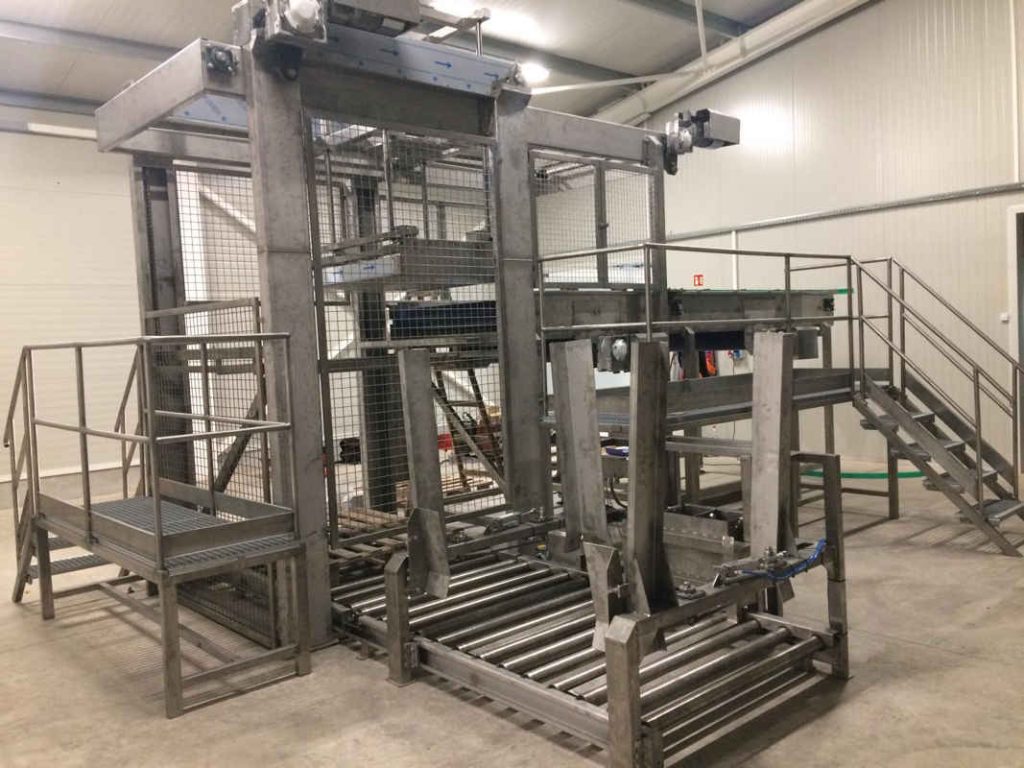

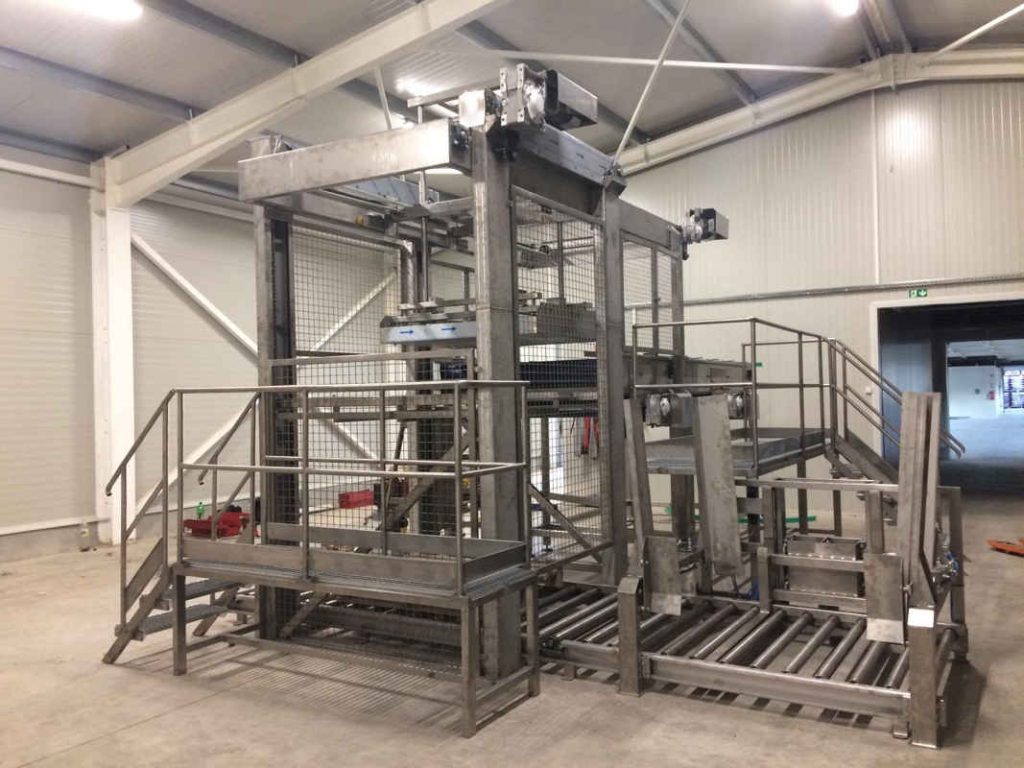

Magnetic palletizer:

The Palletizer forms a unit load from filled cylindrical containers. The metal box and the closed bottle are placed by a magnetic head from the buffer table onto the pallet. The machine places a paper and spacer between the layers manually or automatically. The frame of the stop table of the palletizing machine is made of bent stainless steel with a strap with plastic members. The frame structure of the magnetic head is made of stainless closed section and bent U-iron, with a magnetic head moving carriage. The magnetic head is moved up and down by a pneumatic cylinder. The pallet is raised and lowered with a chain hoist. The finished unit load is removed from under the magnetic head by a roller track. The machine is completely made of stainless steel. The machine can work in both automatic and manual mode. The machine is equipped with a PLC automation controller.

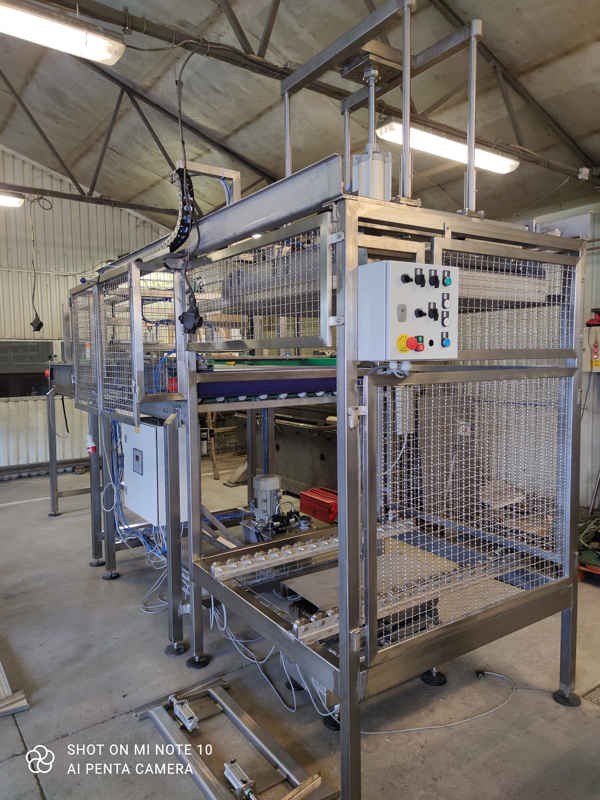

Magnetic basket loader:

The equipment is suitable for unit loading of filled, magnetizable metal boxes or bottles sealed with a metal plate. Suitable for placing filled containers in the autoclave basket. Its high performance is even suitable for serving several packaging lines. The intermediate paper can be loaded manually or automatically. The products to be loaded are crowded from the conveyor to the buffer table. When the cycle starts after congestion, the buffer table stops and the magnetic head catches the product. It is then placed on the freely lifting bottom of the forward basket. After inserting the intermediate paper, the bottom of the basket sinks down one level, and meanwhile the magnetic head returns to its original position, from where the process is repeated. When loading is complete, the loading cycle ends. It’s continuous. The machine is completely made of stainless steel. The machine can work in both automatic and manual mode. The machine is equipped with a PLC automation controller.

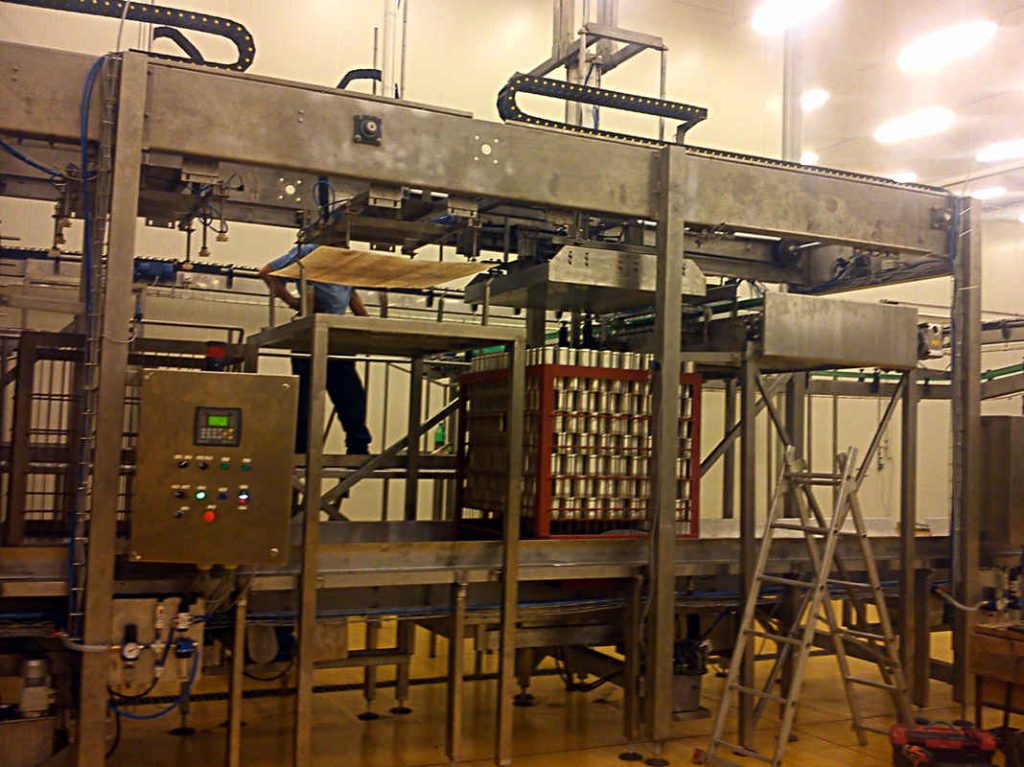

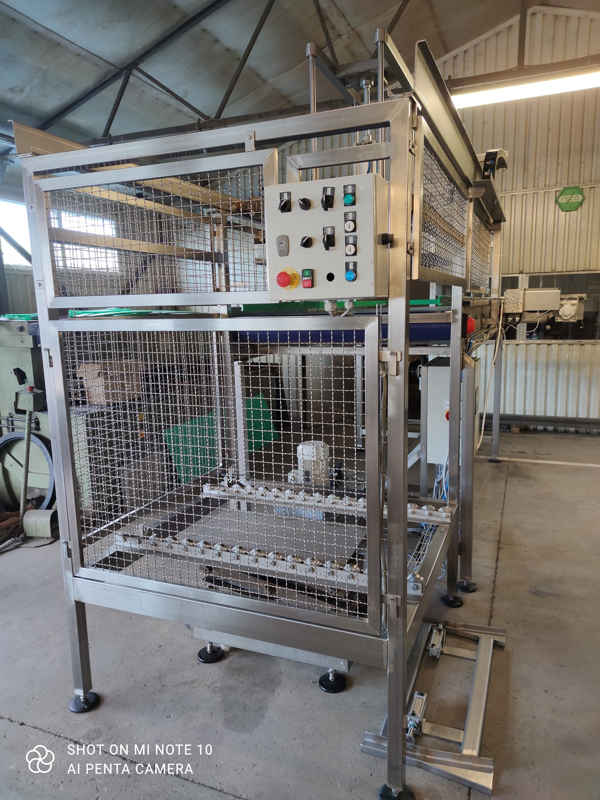

Magnetic basket unload:

The task of the machine is to place the filled containers from the autoclave basket onto the buffer table and transport them from there. Its high performance is even suitable for serving several packaging lines. The intermediate paper can be removed from the layers manually or automatically. The product to be unloaded is in the basket. At the beginning of the cycle, the magnetic head grabs the product from the basket and places it on the buffer table, which moves on and delivers the dishes. After removing the intermediate paper, the bottom of the basket rises one level, and meanwhile the magnetic head returns to its original position, from where the process is repeated. The cycle is continuous. The machine is completely made of stainless steel. The machine can work in both automatic and manual mode. The machine is equipped with a PLC automation controller.

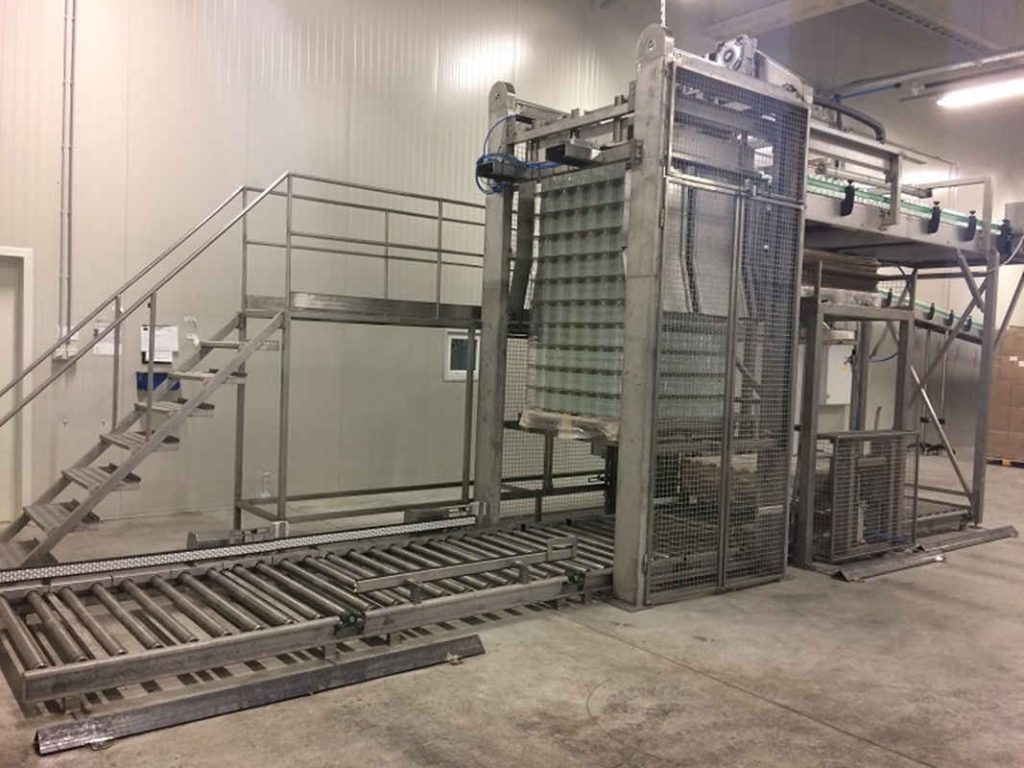

Glass and box depalletizer:

The depalletizer is located in front of the technological line, there. The equipment is made of stainless steel. The machine pushes the goods from the pallet onto the buffer table. The frame of the depalletizing buffer table is made of bent stainless steel sheet with plastic tape. We solve the lifting and lowering of the pallet with a chain hoist. The empty pallet is picked up by a roller track and collected separately. The equipment can handle pallets of different sizes. The machine is also suitable for removing boxes and bottles from pallets. The machine can work in both automatic and manual mode. The machine is equipped with a PLC automation controller.



Receiving and emptying machines

Automatic compartment emptying machine:

Automatic compartment emptying machines play a very important role in technological processing in the food industry, but especially in the refrigeration and canning industries. By putting the compartment emptyer machine into operation, heavy manual work can be reduced, especially when processing bulky products. The task of the machine is to empty the solid vegetables and fruits to be processed from the compartments. The pallets with the compartments must be placed on the roller track with a forklift, which will automatically take them to the elevator equipment. The elevator structure lifts the pallet, then the tweezers take off four compartments and place them on the roller track above, which are forwarded to the two emptyer units. When the pallet is empty, the roller track takes it to the pallet collector, and then the cycle repeats. The equipment ejects the empty compartments to the side. The equipment is made of stainless steel. The machine has a PLC automatic control unit.
The equipment can be connected to the compartment washing equipment for cleaning empty compartments.

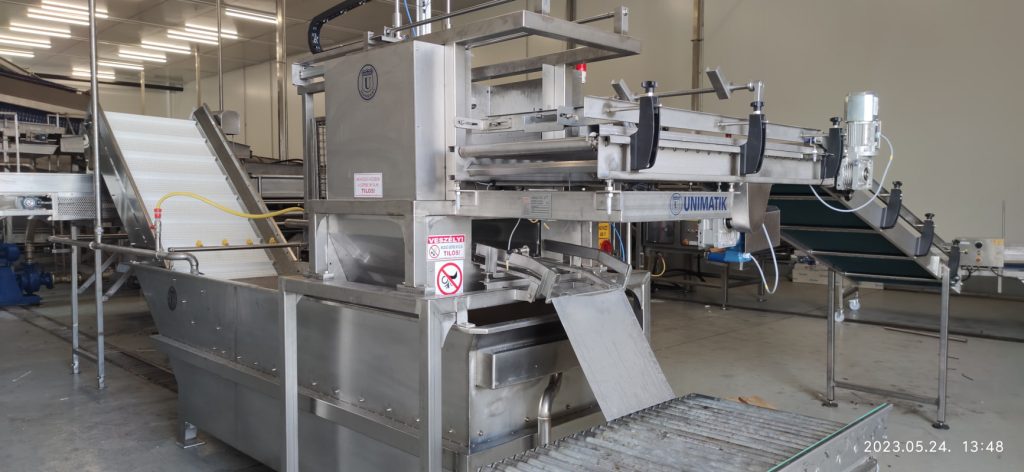

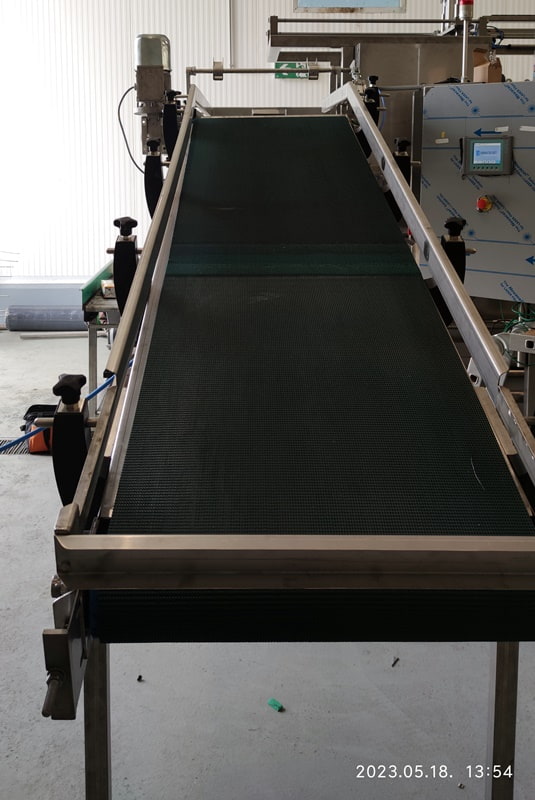

Semi-automatic comparment emptyer machine:

Semi-automatic compartment emptyer machines play a very important role in technological processing in the food industry, but especially in the refrigeration and canning industry. By putting the comparment emptyer machines into operation, heavy manual work can be reduced, especially when processing bulky products. The task of the machine is to empty the solid vegetables and fruits to be processed from the compartments. The compartments are placed manually on the elevator belt. The belt then carries it up to the comparment emptyer unit, which automatically empties the comparment and ejects the empty magazine to the side. The performance of the machine depends on the time required to load the compartments. The equipment is made of stainless steel. The machine has a PLC automatic control unit.
The equipment can be connected to the compartment washing equipment for cleaning empty compartments.

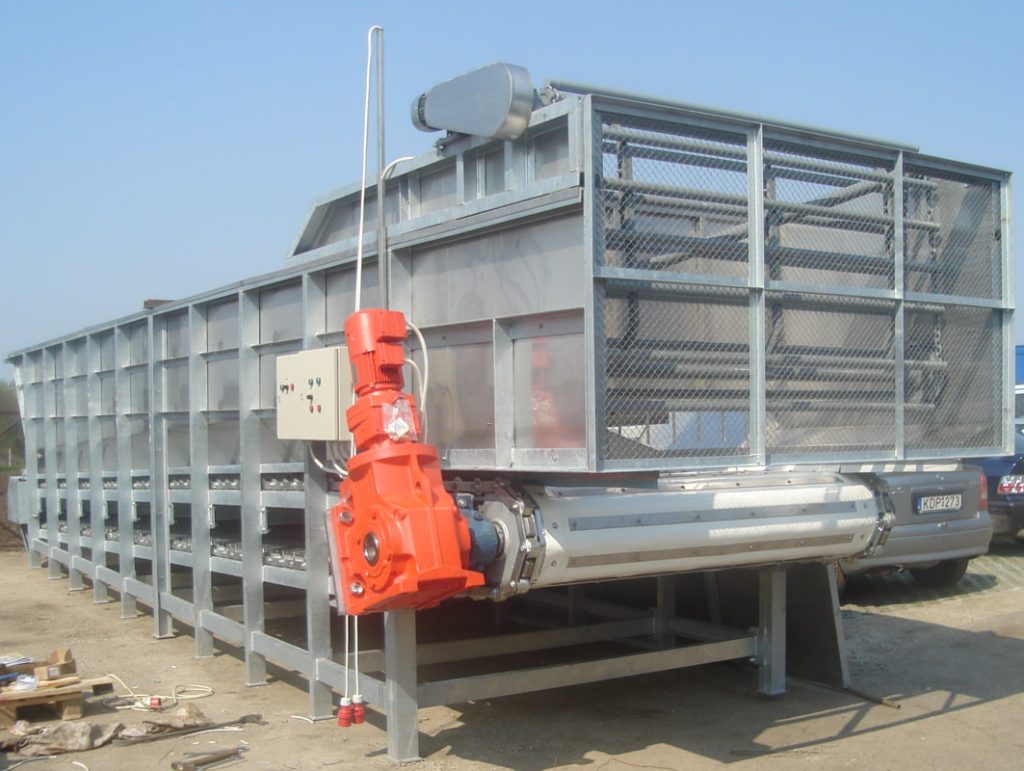

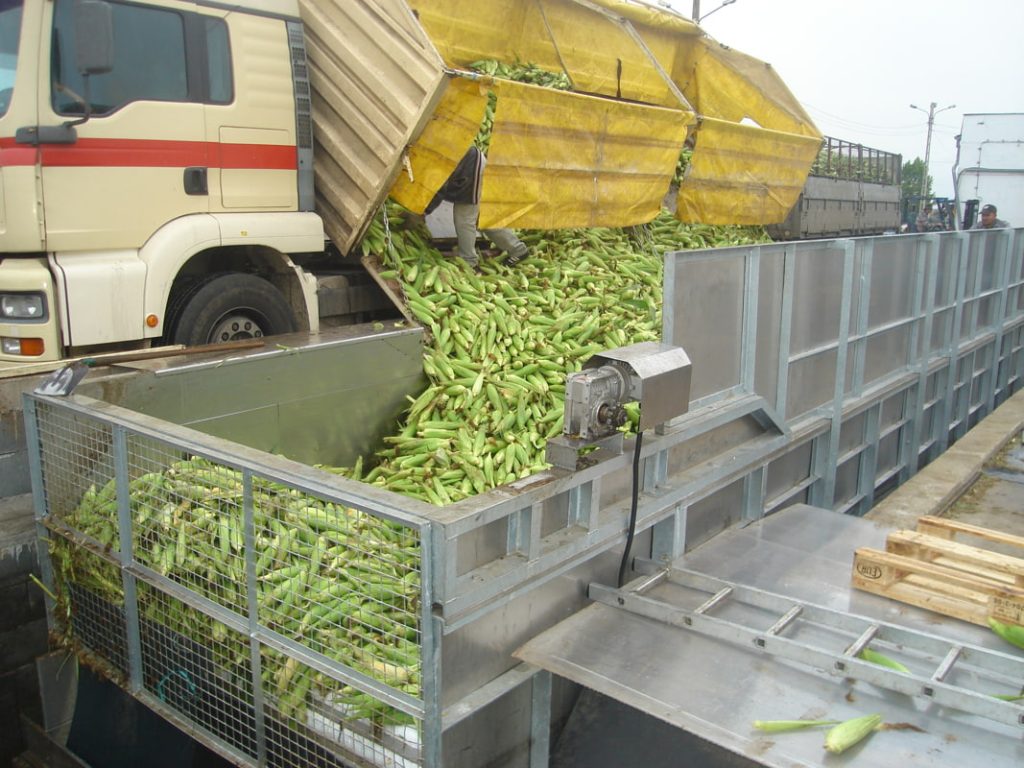

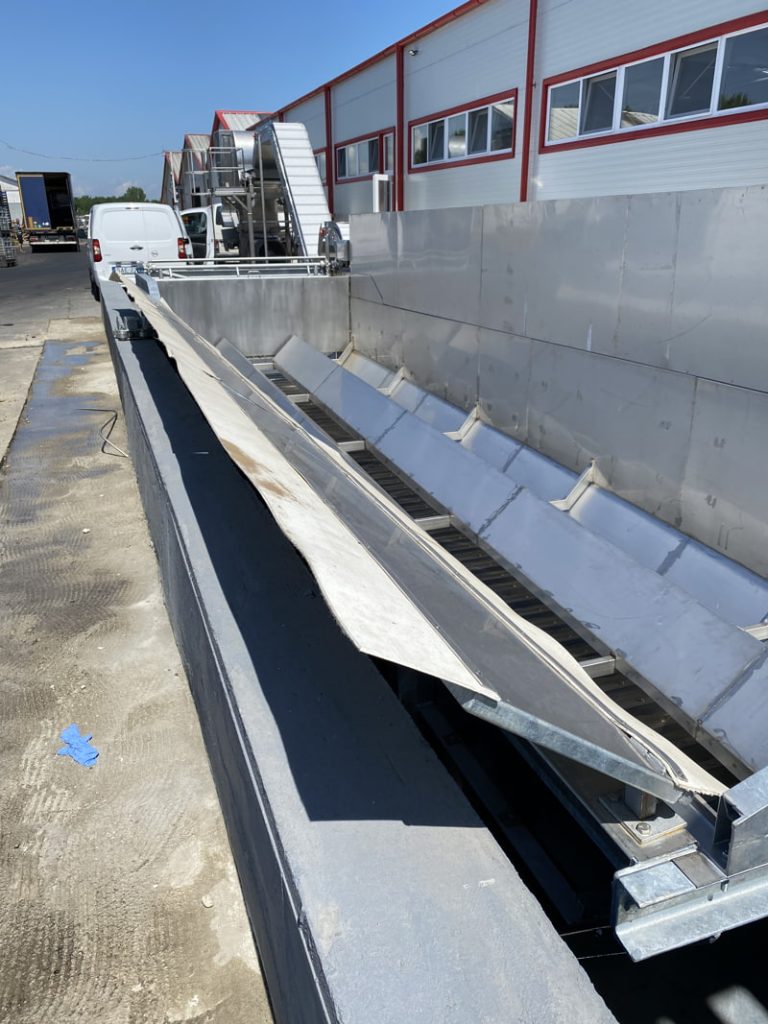

Receiving bunker:

The receiving bunker is suitable for the reception and uniform dosing of raw materials (green peas, tube corn, root vegetables) delivered in bulk on a tipper truck.



Barrel tippers:

The purpose of the barrel tippers is to empty solid, heavy, varied vegetables and impact-resistant fruits from the barrel into the next processing machine.

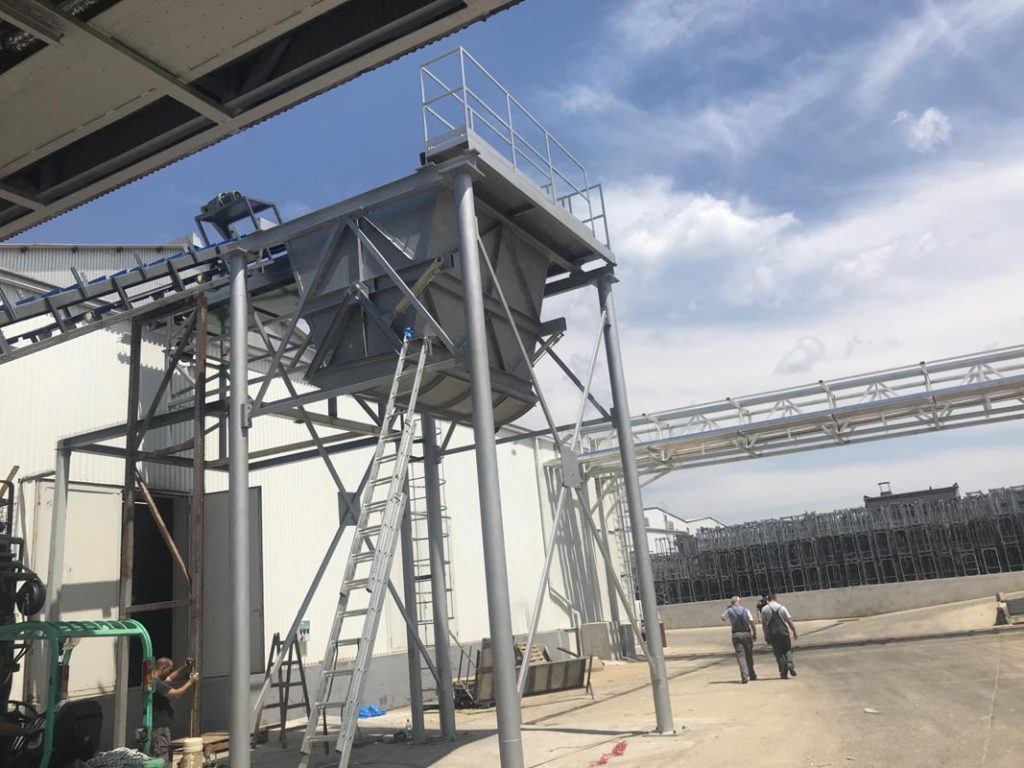

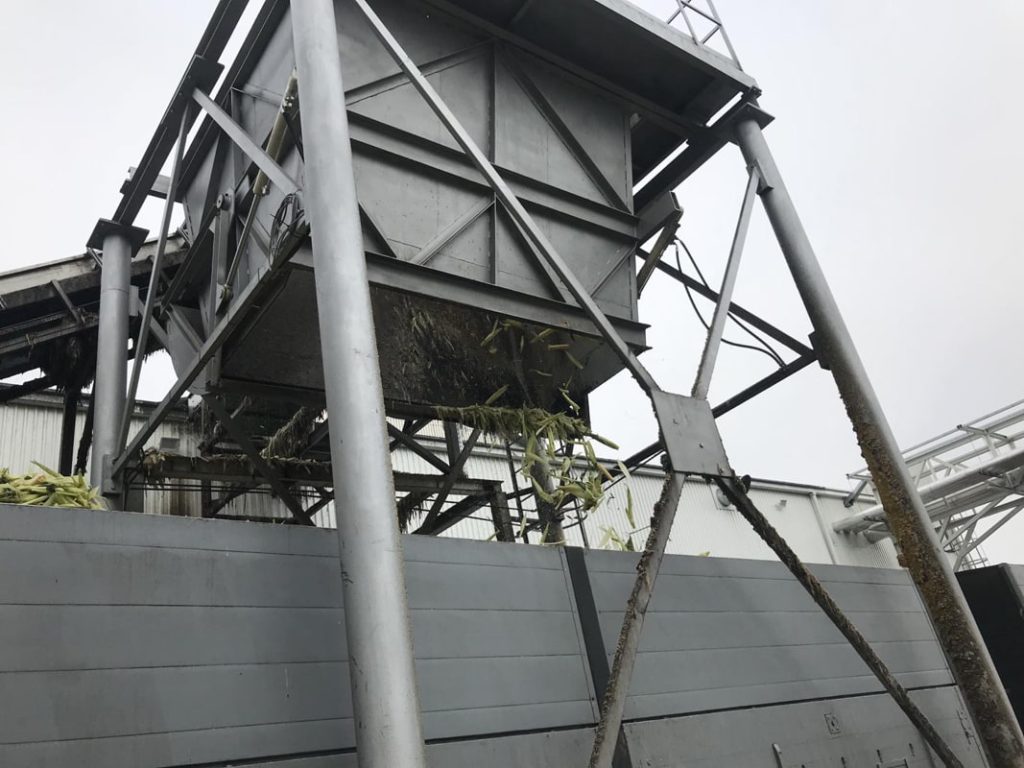

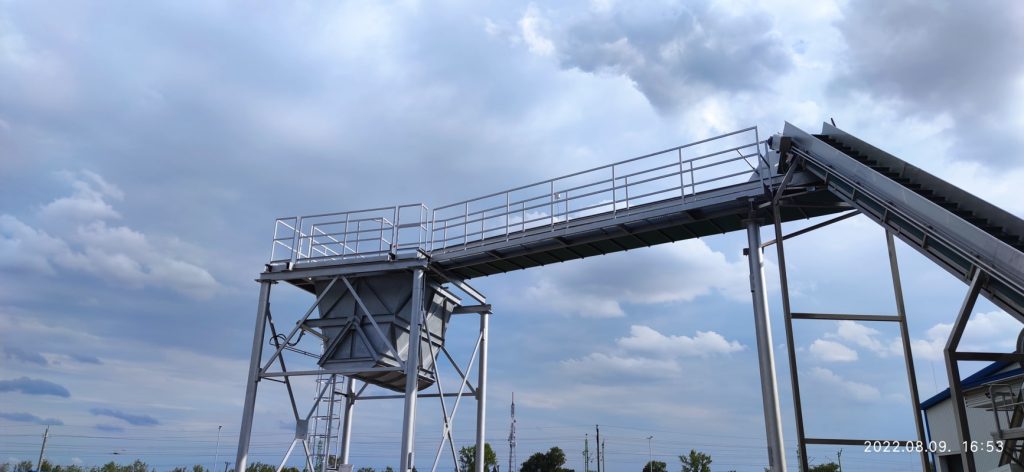

Waste bunker:

The waste collection bunker is also suitable for receiving, storing and emptying the waste generated during the production of sweet corn – husks, leaves. The waste is immediately emptied into the truck that delivers it. The equipment has a carbon steel structure.

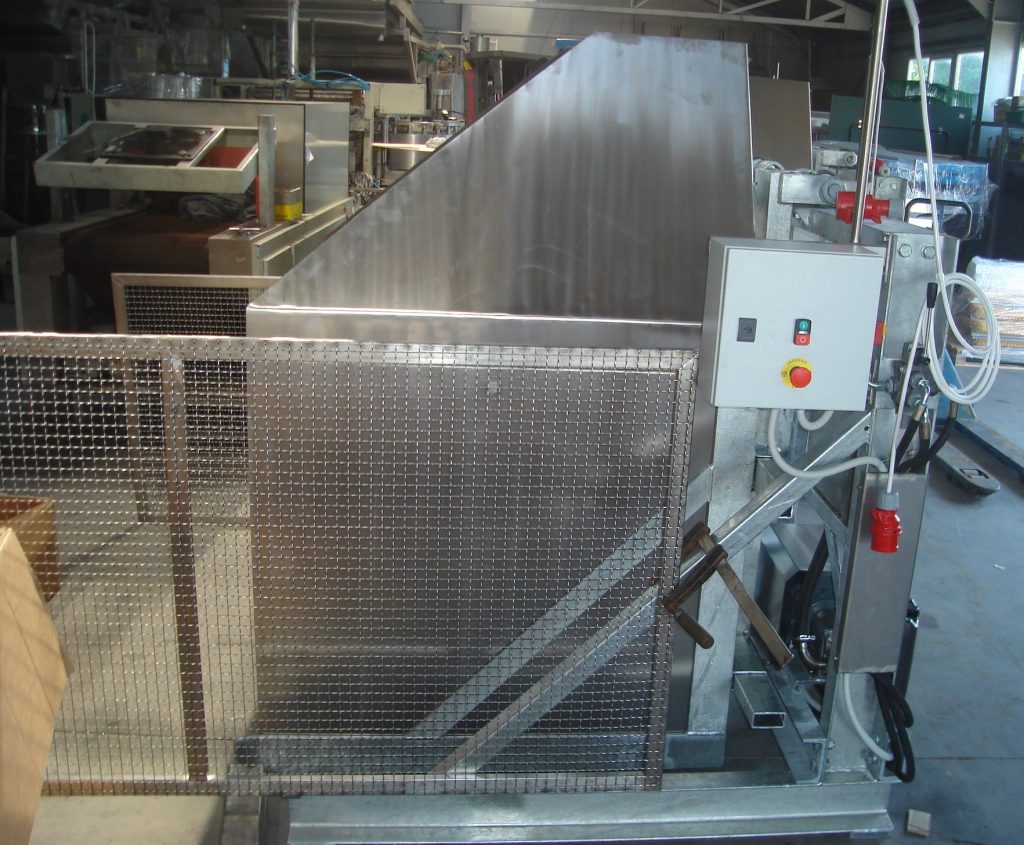

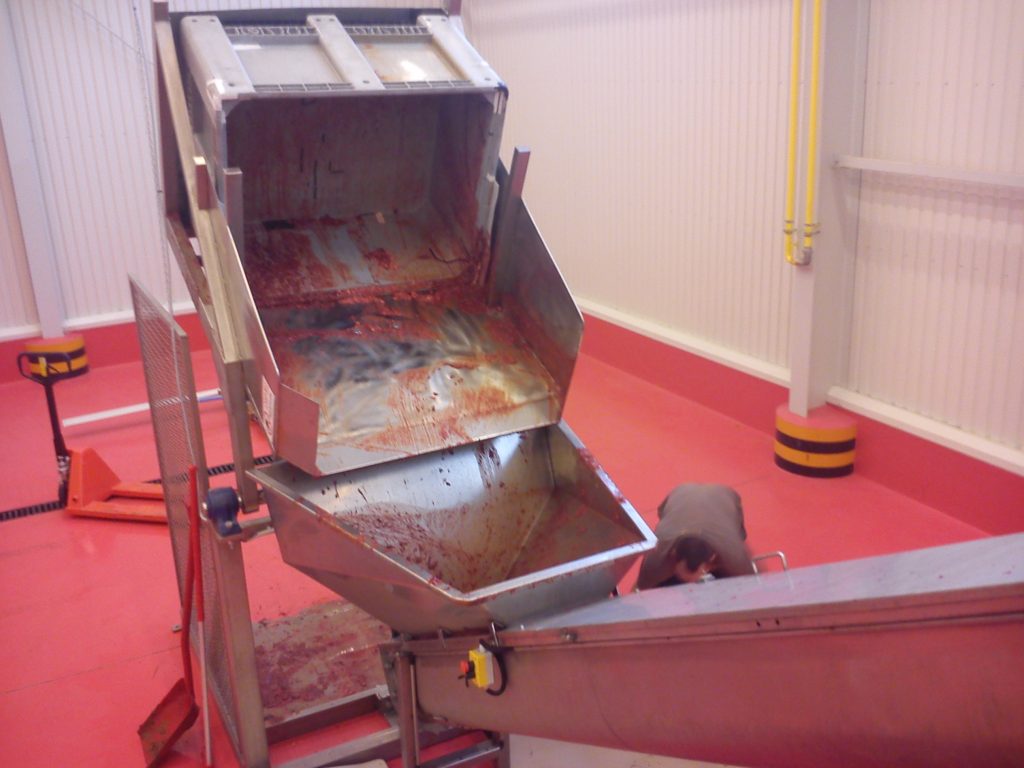

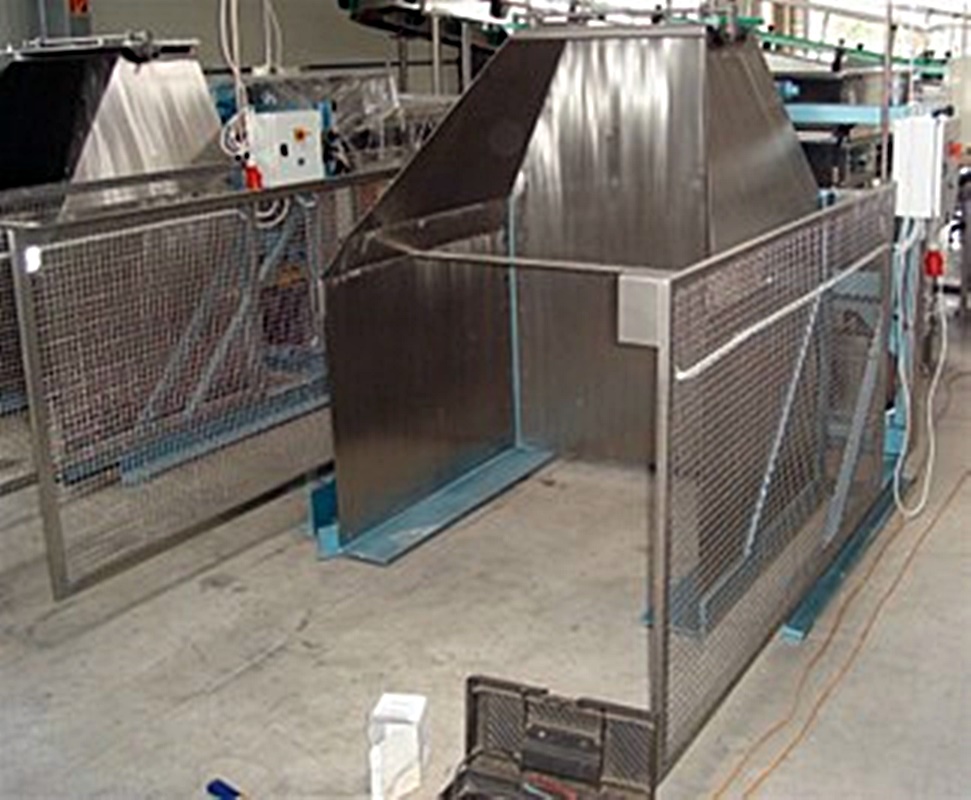

Container tippers:

The task of container tippers is to empty solid, heavy, various vegetables and impact-resistant fruits from the container to the next machine to be processed.

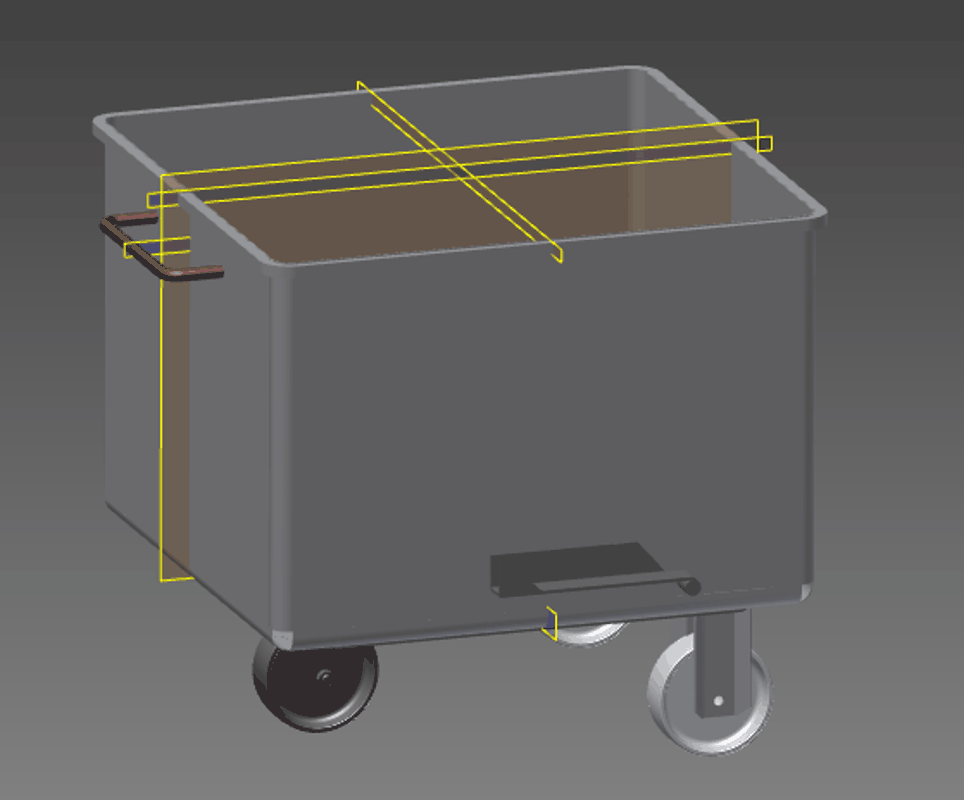

Meat wagon lifter, unloader:

The machine lifts the car manufactured for it and unloads it on the next technological line. Can be used for meat, vegetable and fruit processing lines. It is made in different sizes based on the customer’s ideas. The equipment is entirely made of stainless steel.



Cooking and cooling equipment

Drum Blancher:

The equipment is used for cooking canning and refrigeration products (green peas, corn, etc.) in hot water. All structural parts of the equipment are made of stainless steel. The tub is filled to the level determined by the overflow and is heated to the temperature of pre-cooking. The product fed into the feeding hopper of the machine falls into the perforated spiral-leaf drum, which is immersed in hot water and rotates at a constant speed. The temperature of the water space is kept at the set pre-cooking temperature by the automatic temperature control valve. The auger leaves of the rotating drum transport the product in the hot water towards the dispensing end at a uniform speed. The speed of passage through the machine can be adjusted to the desired value by adjusting the speed of the gear unit with the pre-cooking frequency controller. At the dispensing end of the auger drum, 6 product extraction vanes located radially inside the drum deliver the product to the dispensing hopper. The excess water leaves the tub through the two overflows. We produce it in different capacities.

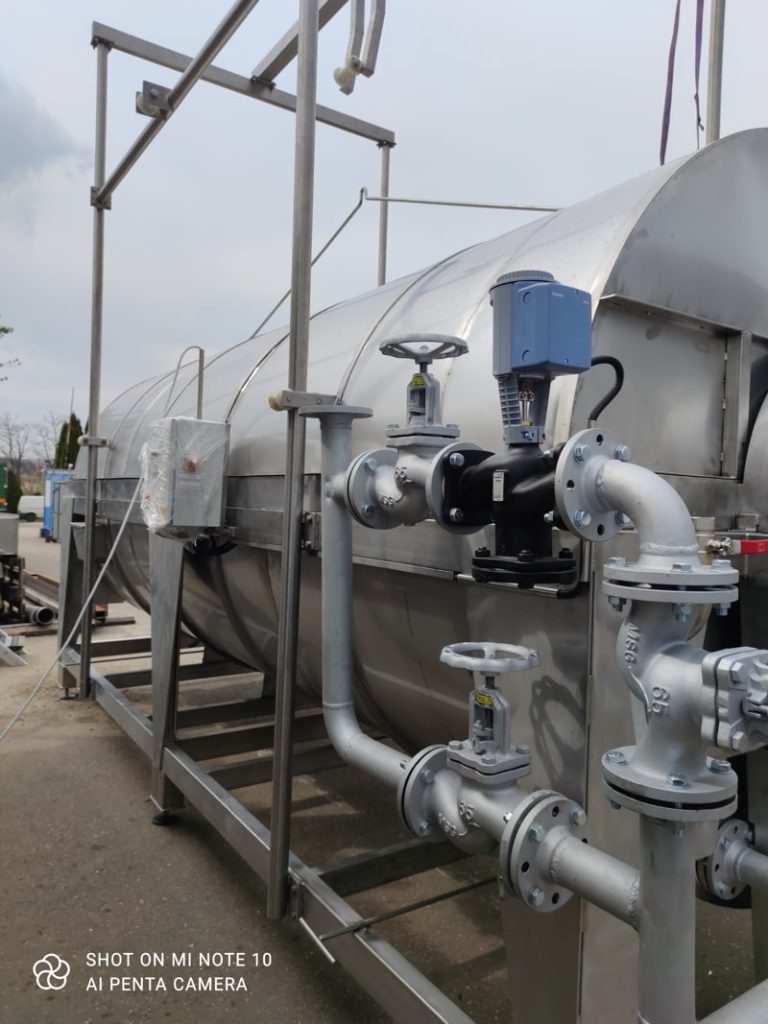

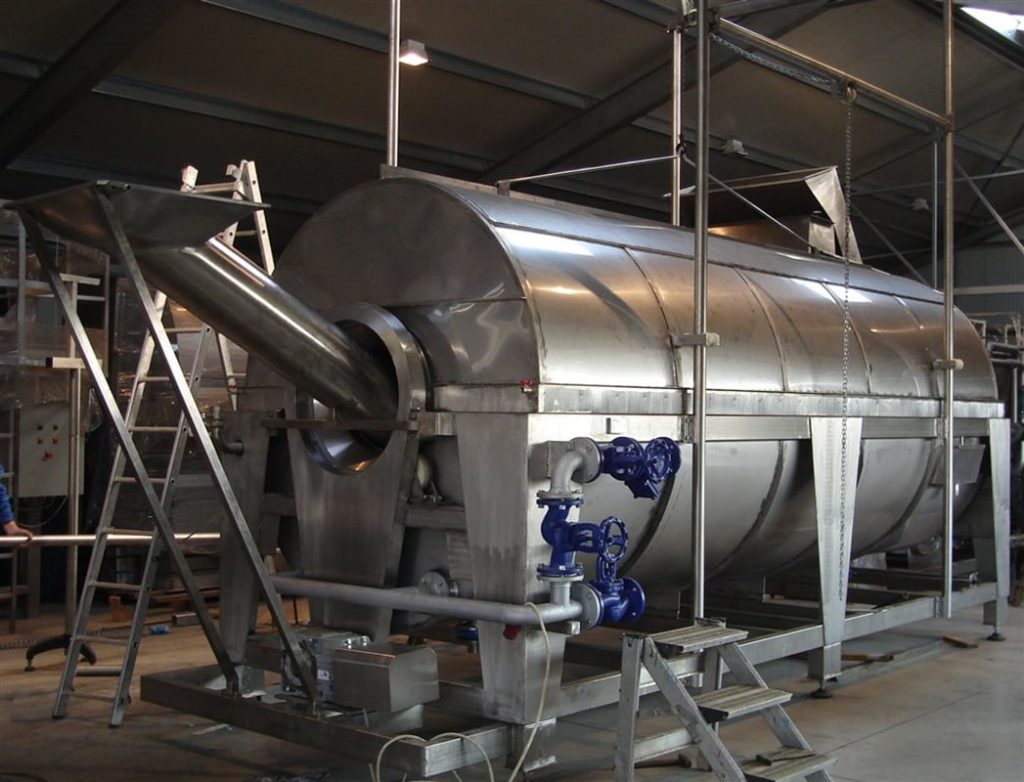

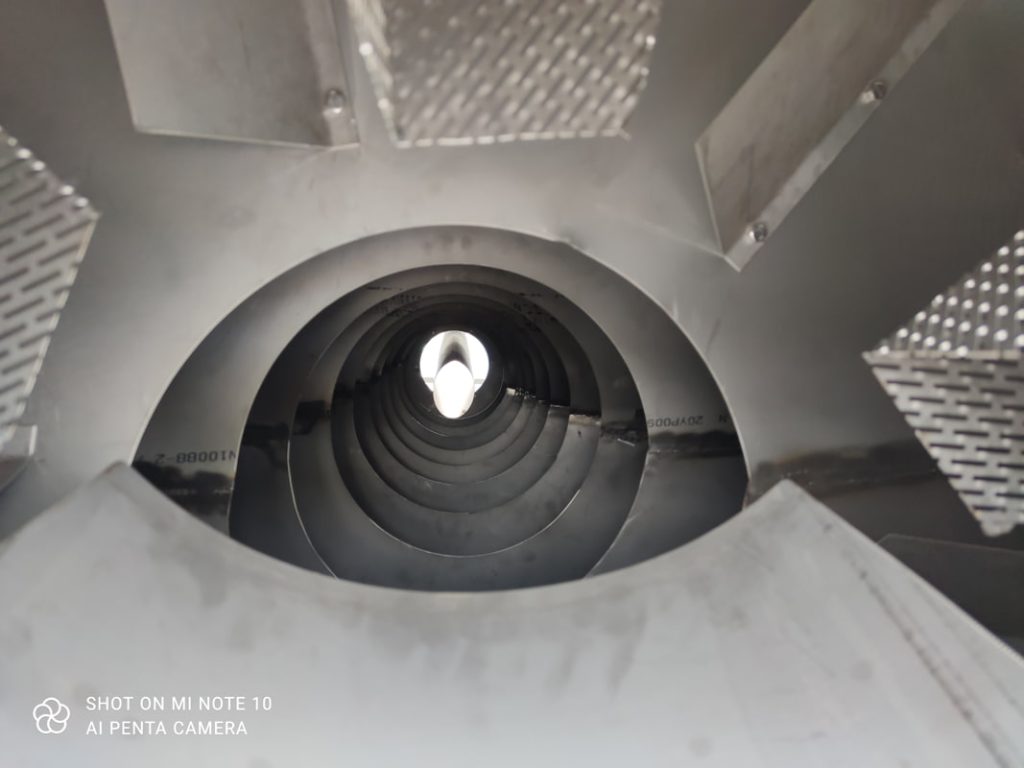

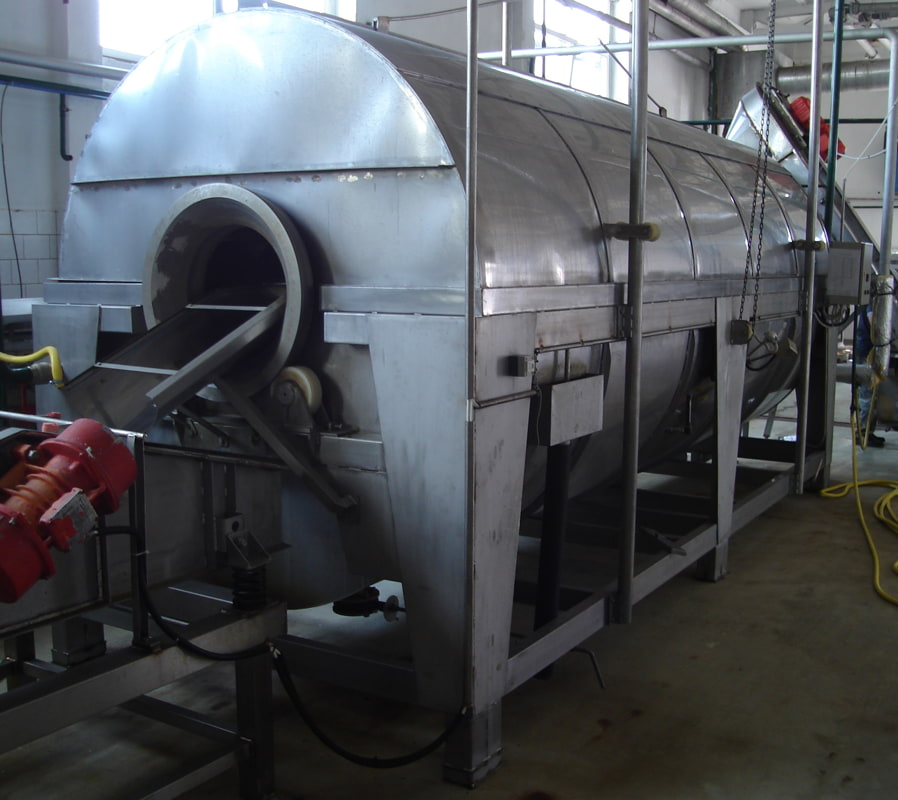

Screw preheater:

Various fruits (soft-fleshed, stone fruits, apples, tomatoes, etc.) together with seeds or essential for heating and enzyme inactivation. Only properly prepared (e.g. washed, stem torn, etc.) ripe pieces of fruit are suitable for processing, unripe, hard fruit can only be processed with great loss. The screw preheater has a horizontal arrangement, two cylindrical bodies, with heating jackets placed next to each other, both with a screw paddle mixer and a transport shaft. The fruit arrives in the receiving hopper of one of the cylindrical bodies, passes through the inside of the body, then is transferred to the other cylindrical body with transfer paddles, and after passing through it, exits the pre-heater.

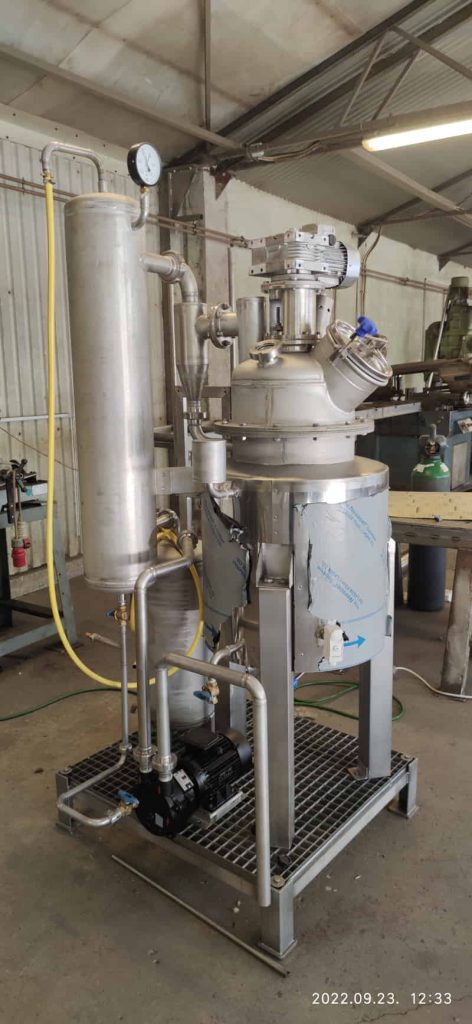

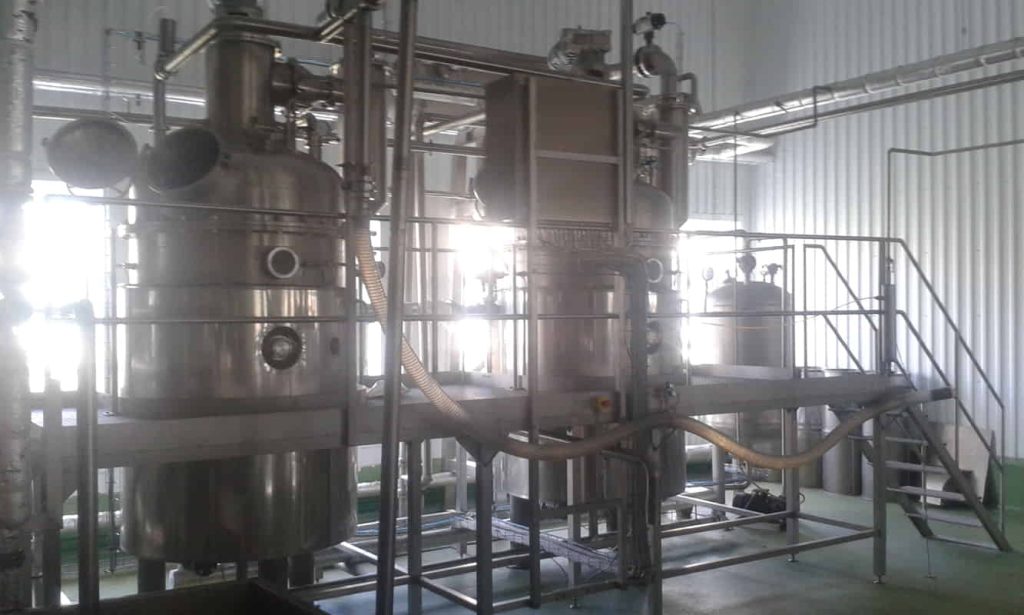

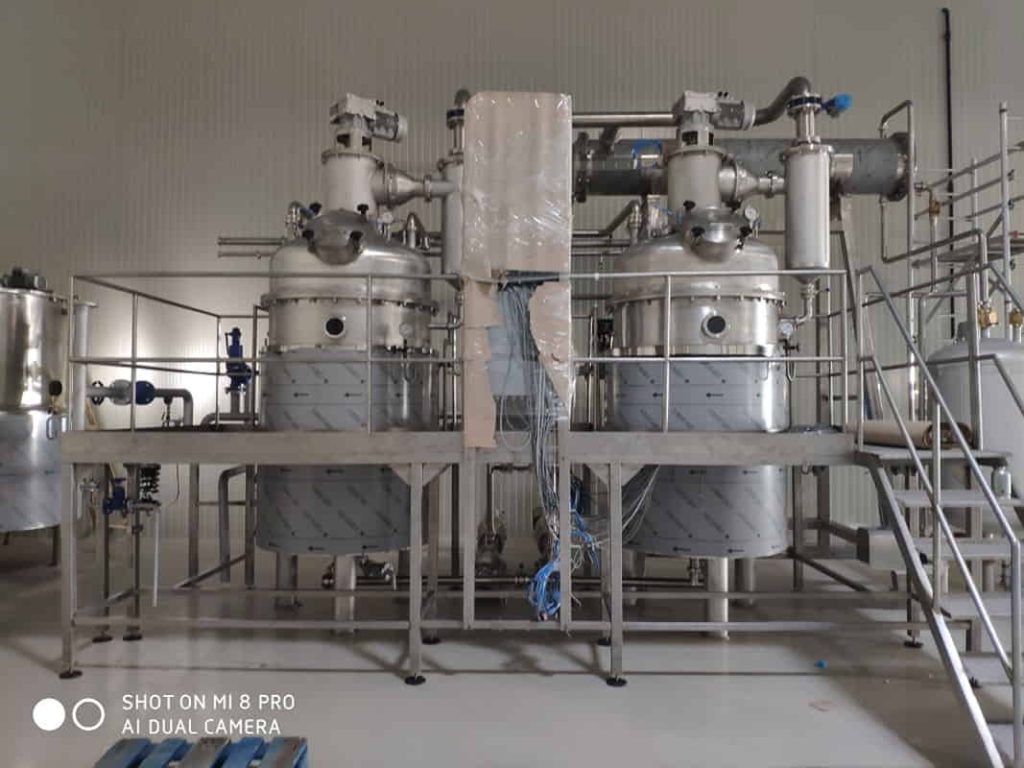

Automatic Spherical Vacuum Station:

The spherical vacuum is suitable for reducing and compressing the water content of various liquid materials at low temperatures under vacuum. Primarily, it is prepared for the processing of fruit pips and making jam. It can also be used to mix and dissolve several materials during compression. The equipment is made entirely of acid-resistant steel. They are made in different sizes from 50 liters to 1500 liters.

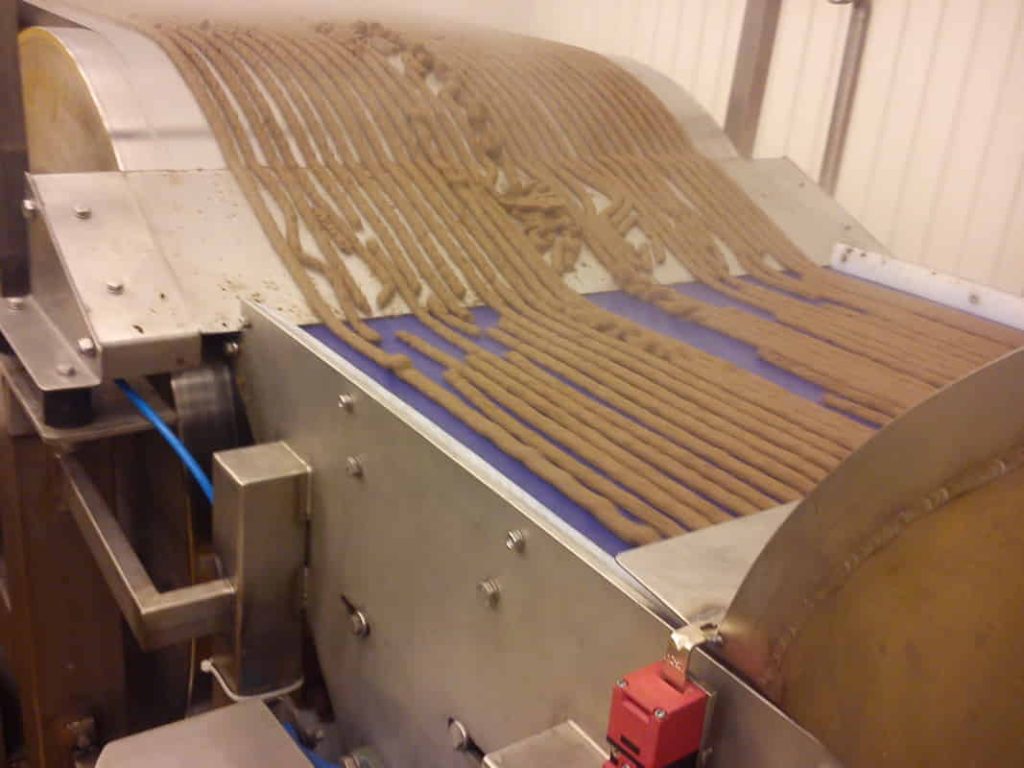

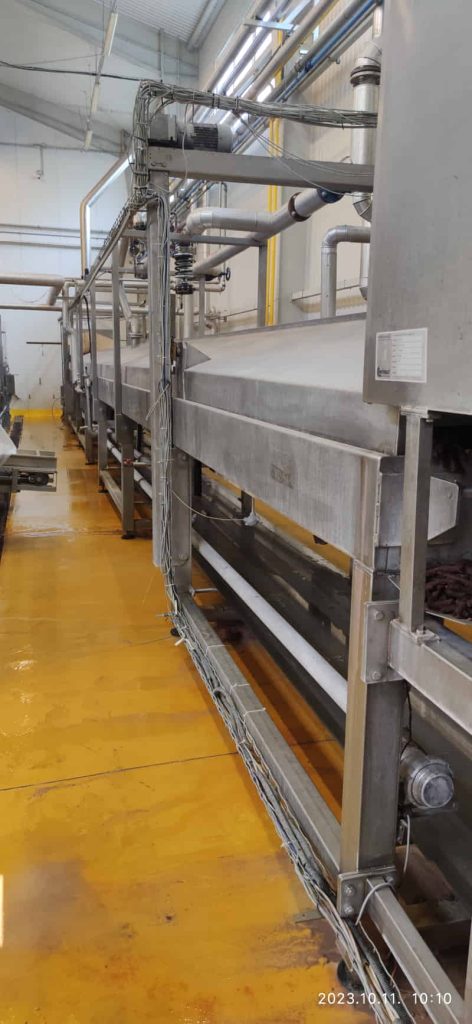

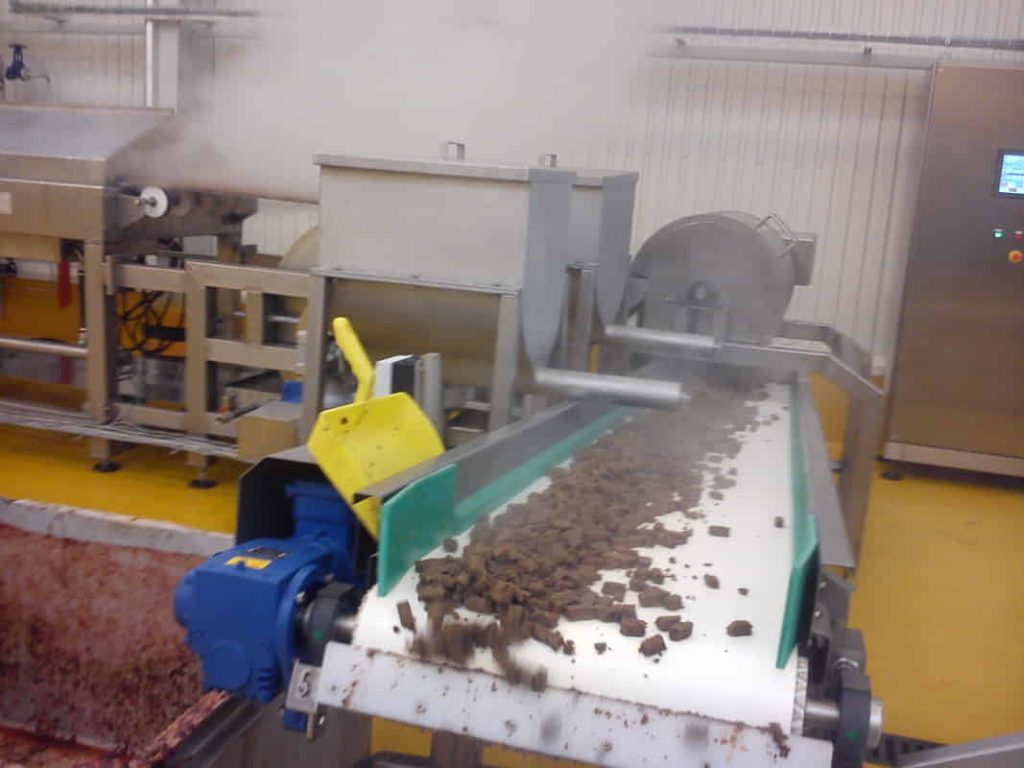

Steam tunnel:

The task of the steam tunnel is to cook various meat products with steam. The frame structure of the steam tunnel is a stainless steel closed section, on which the lower tub and the upper lid, which can be moved by a motor, are placed. The steam nozzles are located in the lower tub and the upper lid. The steam blowers heat the stainless belt from below, while the steam meets the products to be cooked from above. At the junction of the lower tub and the upper lid, we ensure its tightness with the water seal. At the water lock, the water level is solved by level control. The monopump pushes the mixed and ground product into the extruders. From the extruders, the product passes through the extruder head onto the belt of the steam tunnel, and then, passing through the steam tunnel, the product is cooked. The cooked product is separated from the tunnel belt by a separator, and from there it is transferred to the plastic belt conveyor. A slicer is placed at the end of the conveyor belt, which slices the product.

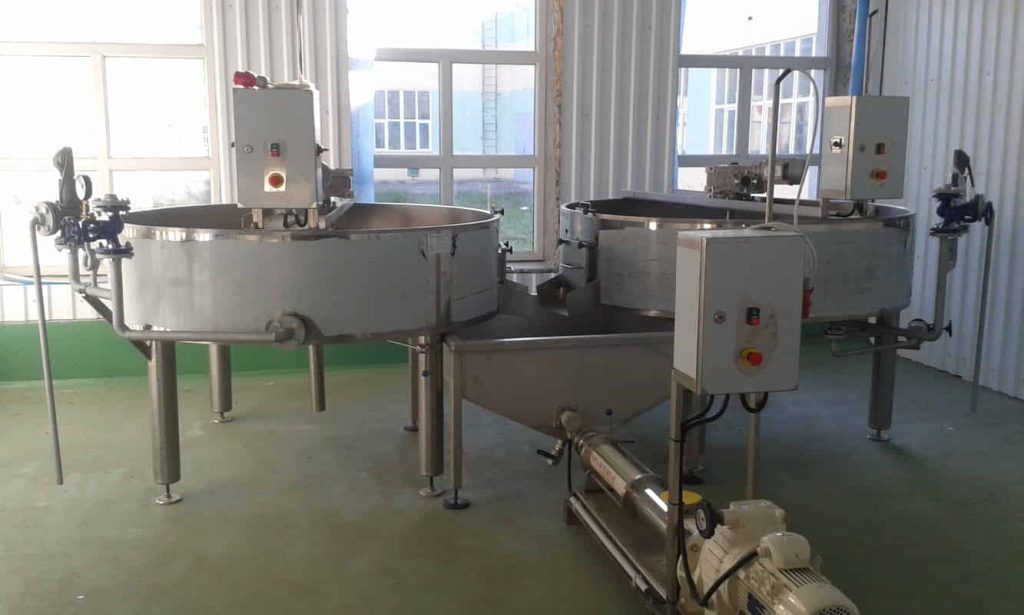

Vegetable fryer:

The vegetable fryer can be used to make vegetable caviar, but it can also be used for frying, boiling and preparing other vegetable masses. The main part of the vegetable roaster is a flat-bottomed cylindrical pot. In this container, only the bottom heats up, so that the product does not burn. The short sleeve of the cylinder and the bottom itself are insulated and covered by a stainless shell. The vegetable fryer stands on 4 tubular legs, on which there are adjusting screws, which can be used to adjust the horizontal position of the bottom during operation.

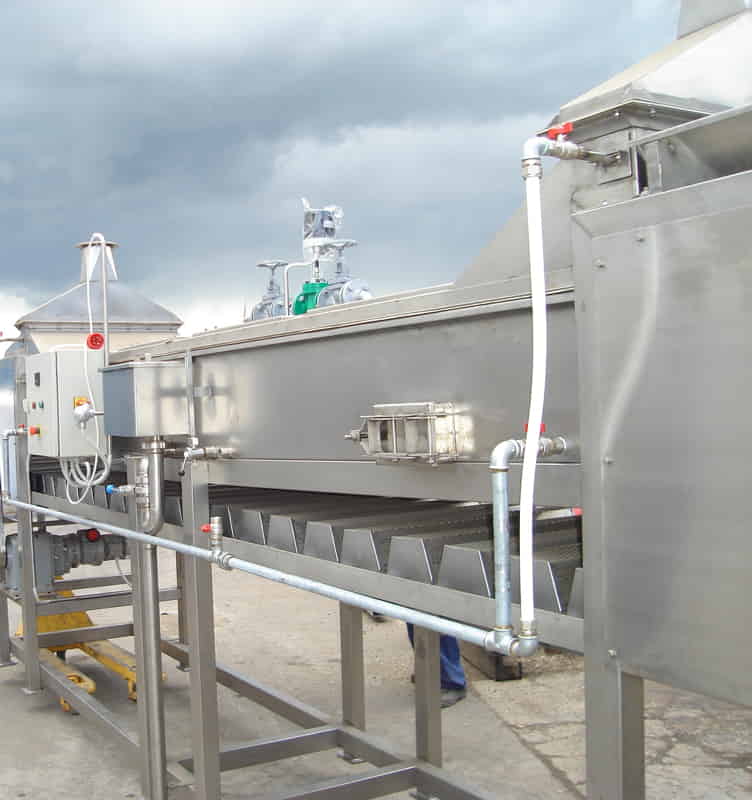

Continuously functioning basket pre-cooking:

Continuously functioning basket pre-cooking equipment plays a very important role in technological processing in the food industry, but especially in the refrigeration and canning industry. Its task is to pre-cook various vegetables and small fruits in a solid state to be processed according to technological specifications. The raw material added to the equipment is placed in continuously moving conveyors. The pre-cooking equipment is suitable for pre-cooking the raw material with steam and hot water. The time of pre-cooking can be changed steplessly within the regulated range.

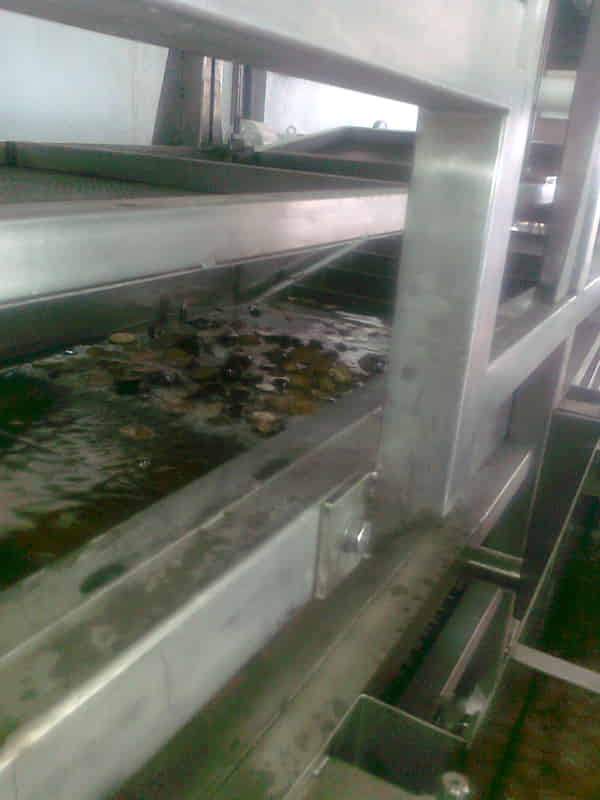

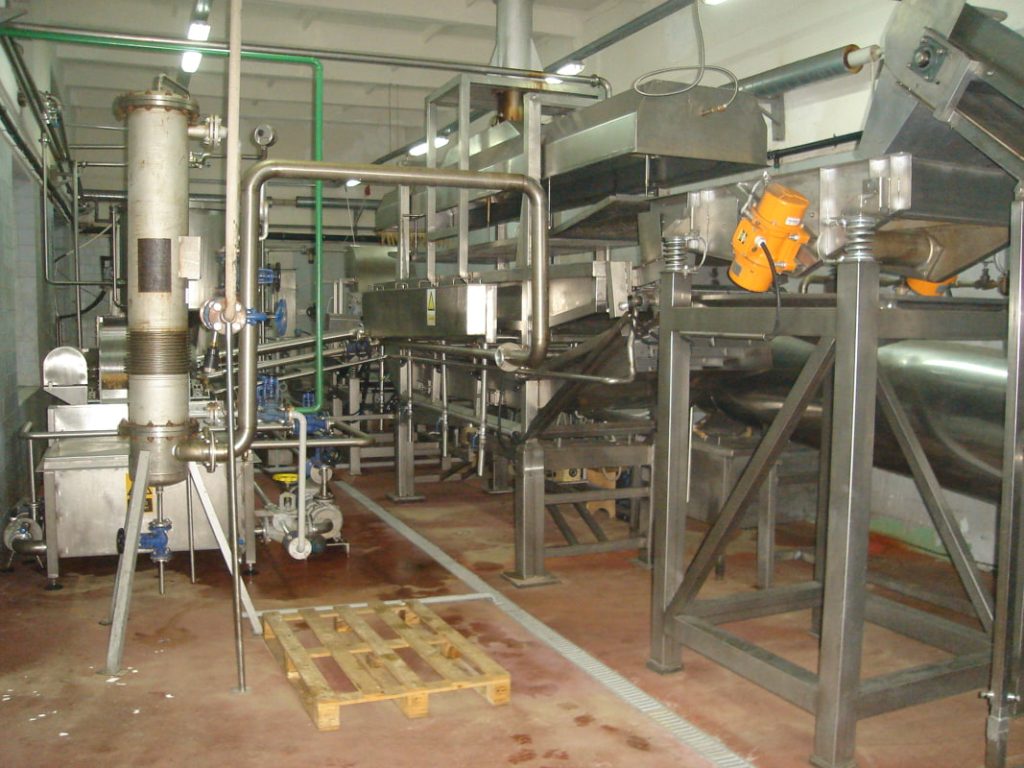

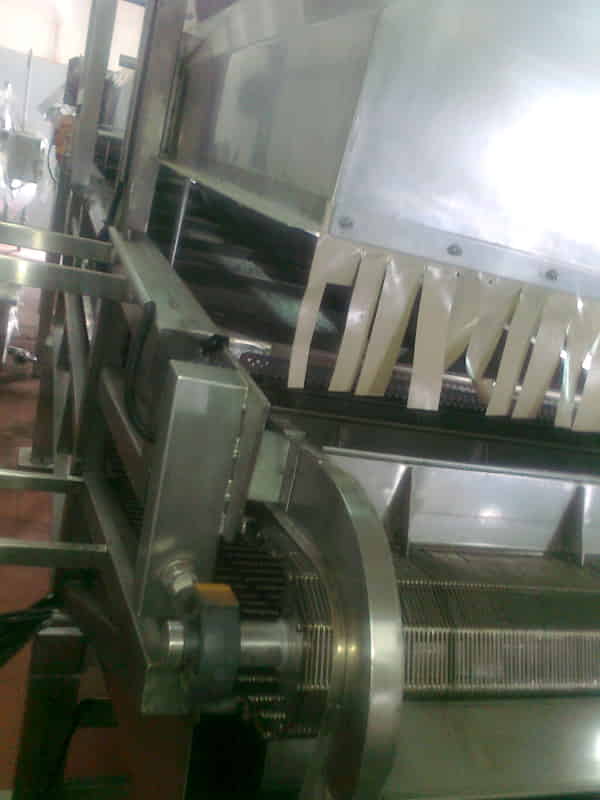

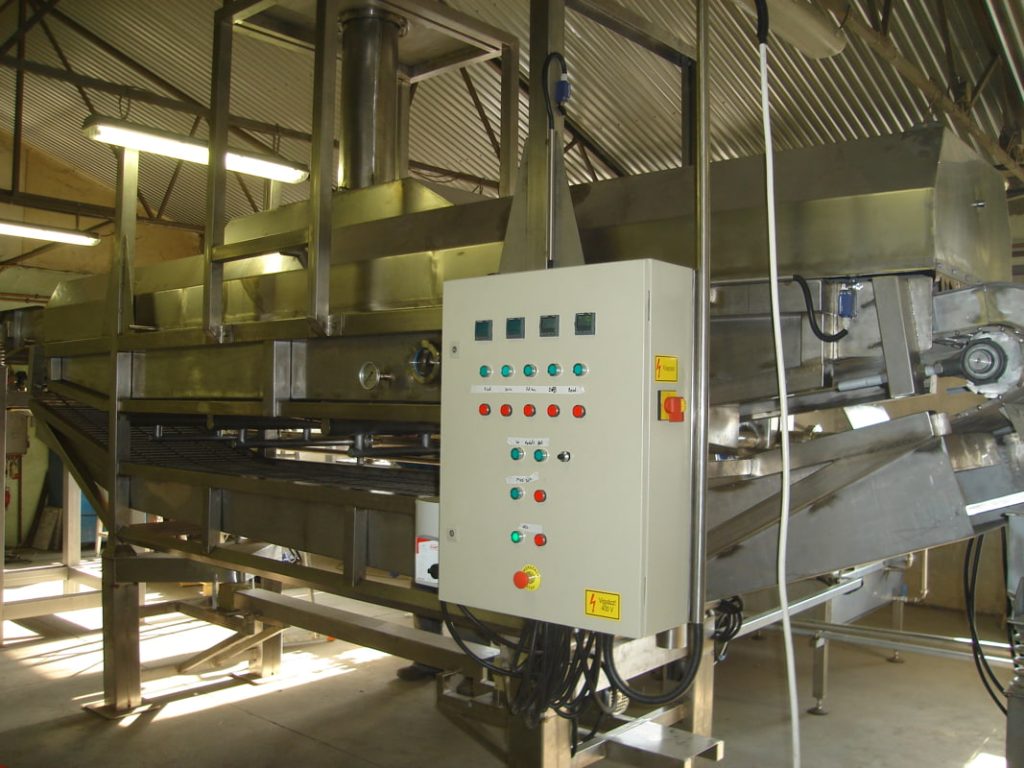

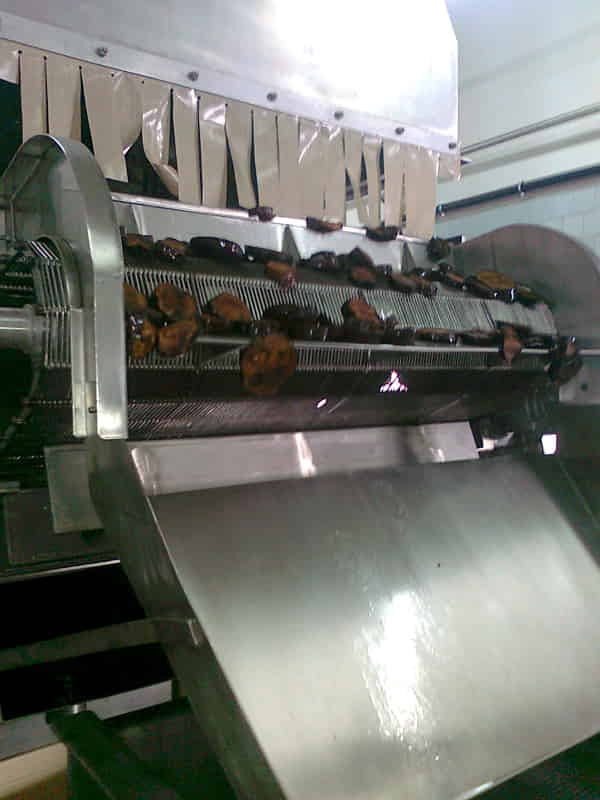

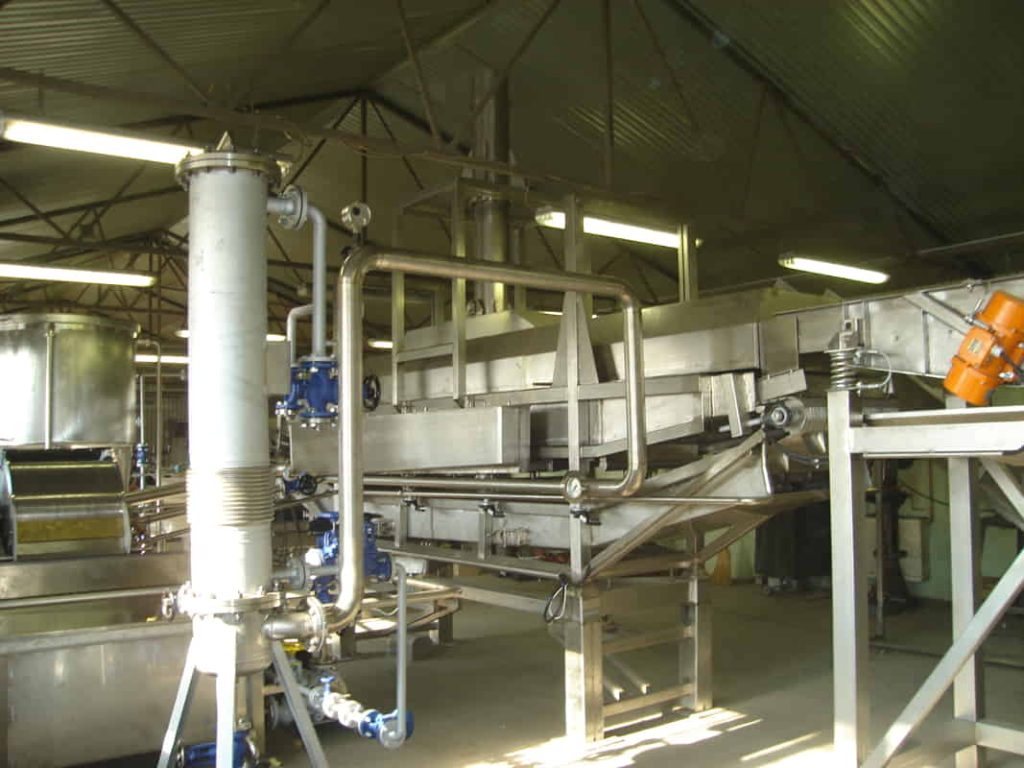

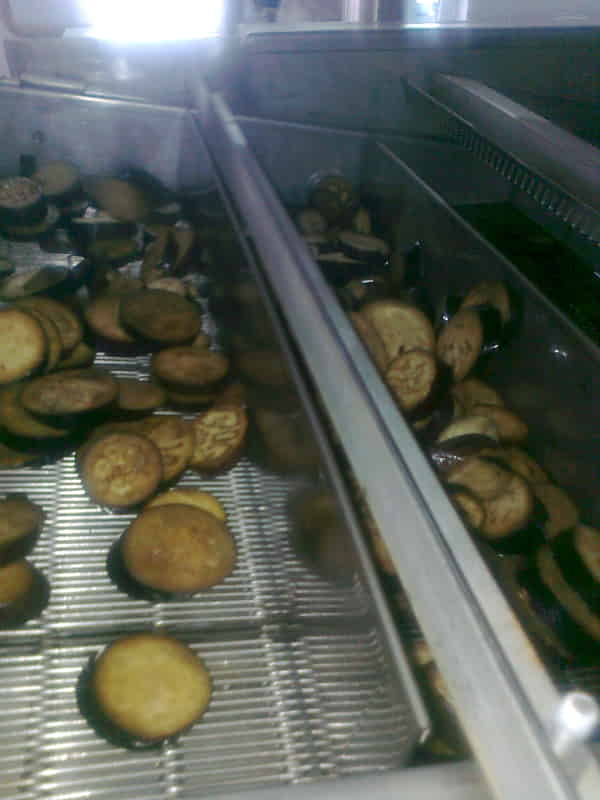

Continuous oil fryer:

The uniquely designed and manufactured equipment is used for frying shelled oil seeds (hazelnuts, almonds, cashews, pumpkin seeds, sunflowers, etc.) in oil. In order to satisfy a wide range of application needs, the dosing performance of the equipment, the speed of the conveyor belt and the temperature of the frying oil can be adjusted within wide limits, which can be adjusted empirically according to the specific needs.

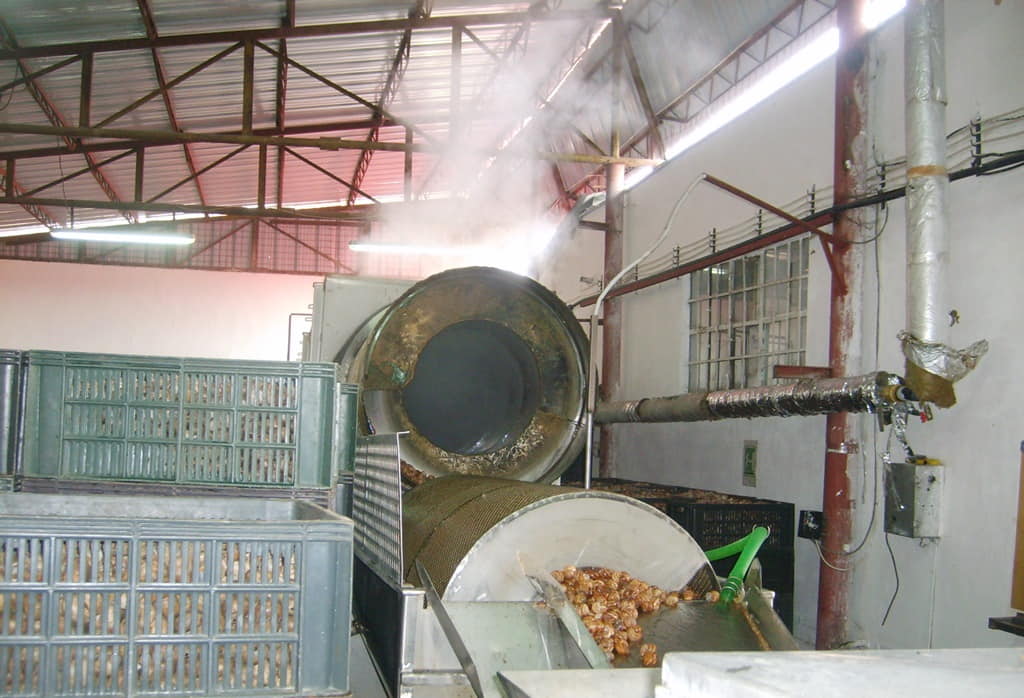

Snail dryer:

Used for drying and pre-cooking the snail shell.

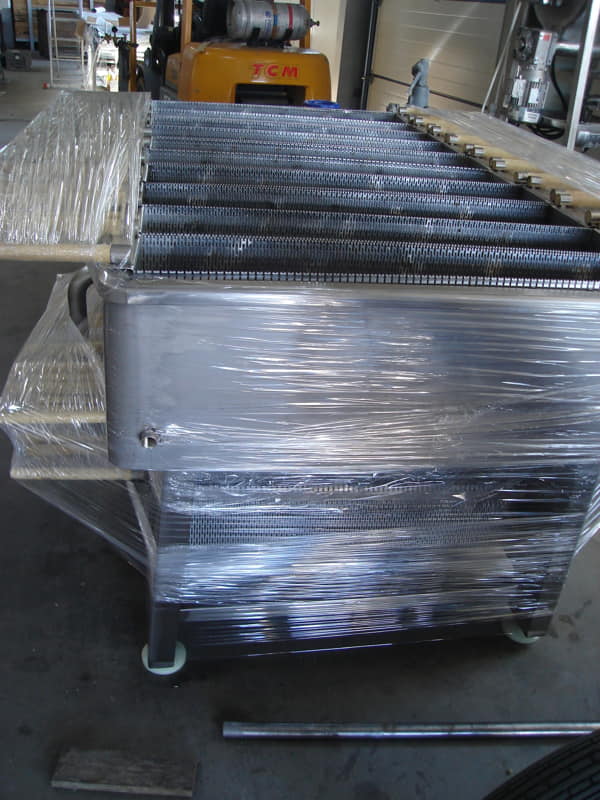

Manual vegetable fryer:

It can be used for frying and roasting many kinds of vegetables. The raw material must be fed into the machine by hand, and it can be taken out together with the finished product in the oven. It is made of stainless steel.



Classification and separation machines

Green bean snipper:

The equipment declustered and partially cleaned green bean pods. The product passes through the receiving hopper into the shoveled receiving end of the rotary drum, and then passes through the machine at a speed corresponding to the angle of inclination. During passage, the sleeve ends protruding through the gaps of the segments that make up the drum’s casing are cut off by knives clamped to the casing by springs and the cluster is broken. Garbage falling through the gaps and the cut tips fall into the collection trough, from where they can be removed with a belt. The tip-cut sleeves passed through the drum exit through the drum out

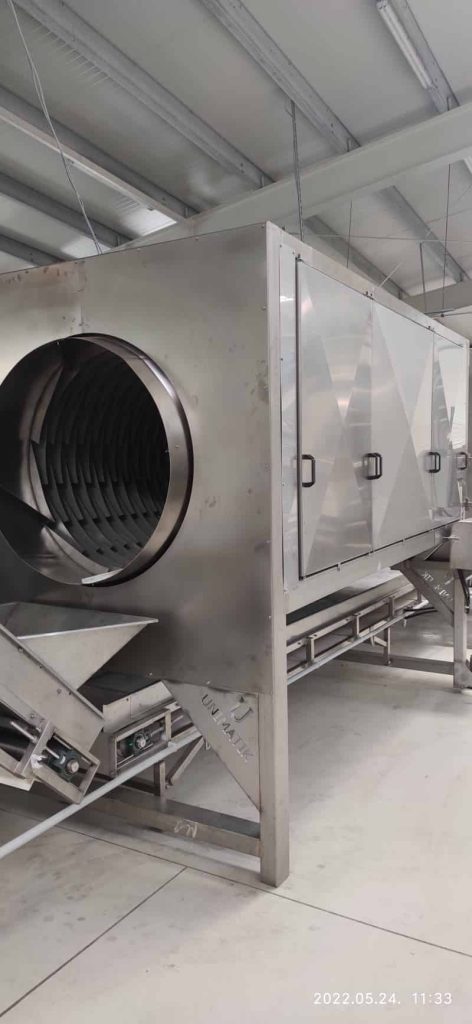

Green Bean cutter:

The equipment performed tip cutting and partial cleaning of green bean pods. The product passes through the receiving hopper into the shoveled receiving end of the rotary drum, and then passes through the machine at a speed corresponding to the angle of inclination. During passage, the sleeve ends protruding through the gaps of the segments that make up the drum’s casing are cut off by knives clamped to the casing by springs and the cluster is broken. Garbage falling through the gaps and the cut tips fall into the collection trough, from where they can be removed with a belt. The tip-cut sleeves passed through the drum exit through the drum outlet.



Berry ripper::

For different berries (grapes, black currants, elderberries, etc.), it is used to separate the berries from the stem parts.

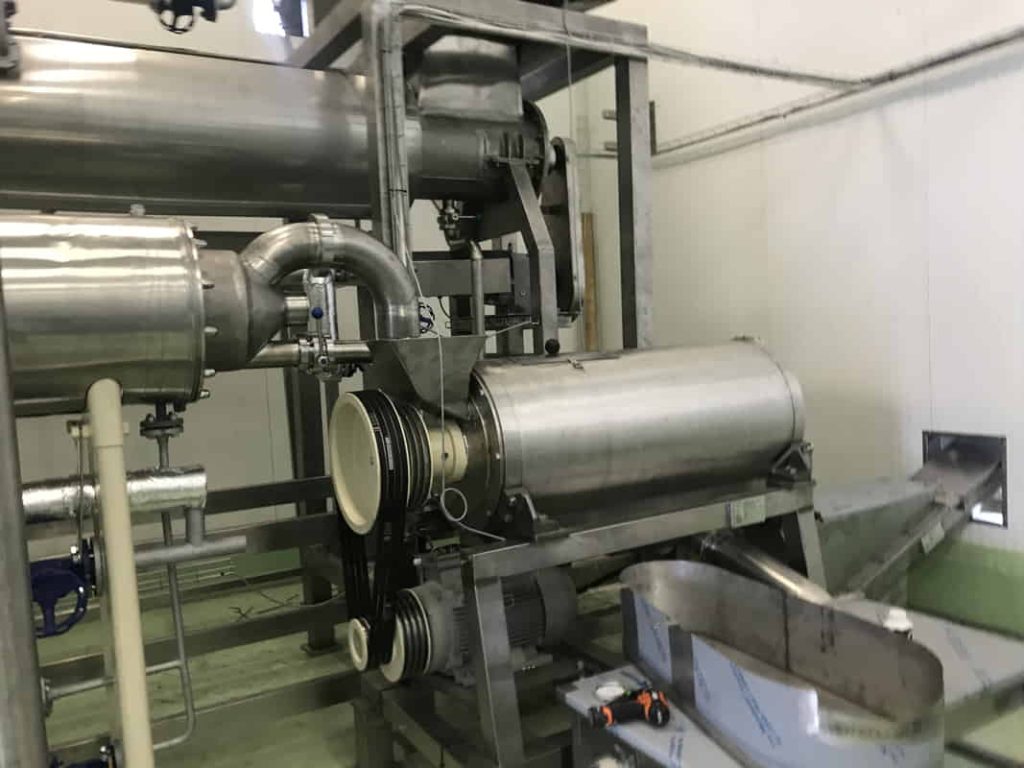

One-stage squeezer:

It is used for seeding various fruits and straining fruits, vegetables, and fruit pulp. It can be used for processing pre-cooked or ripe, raw fruits. Only properly prepared (e.g. washed, stem torn, etc.) pieces of ripe fruit are suitable for processing, unripe, hard fruit can only be processed with high losses. The equipment is made of stainless steel.

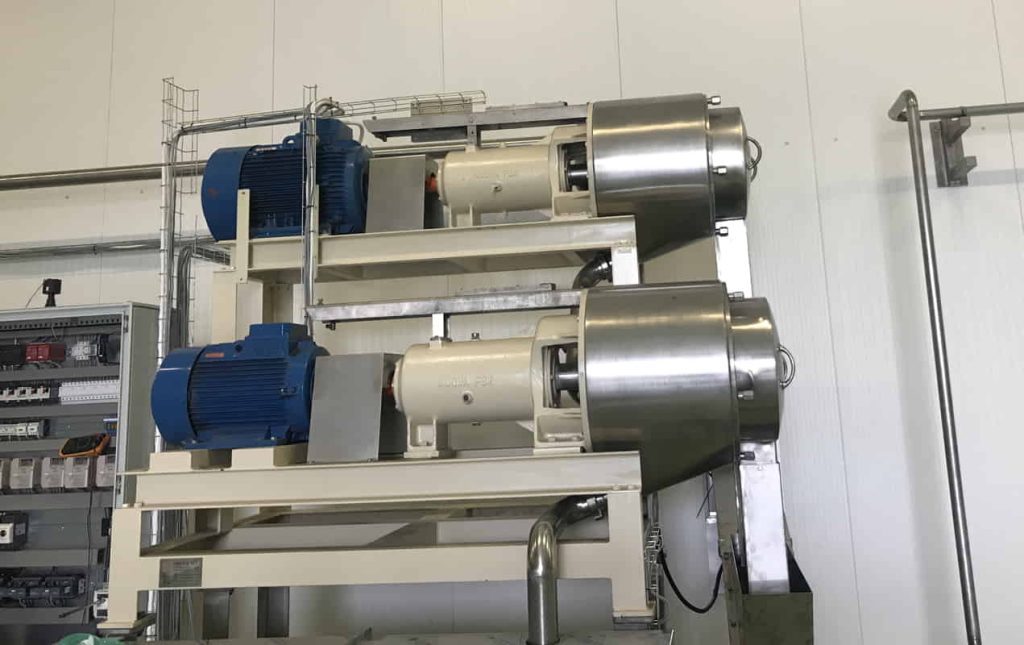

Two-stage squeezer:

It is used for straining various fruits, vegetables and fruit pulp. It can be used for processing pre-cooked or ripe, raw fruits. Only ripe fruit that has been properly prepared (e.g. washed, torn from the stem, cut with seeds, etc.) is suitable for processing, unripe, hard fruit can only be used with high losses. The machine was created by building 2 single-stage squeezer machines (P014) on a common stand and properly connecting them. The equipment is made of stainless steel.

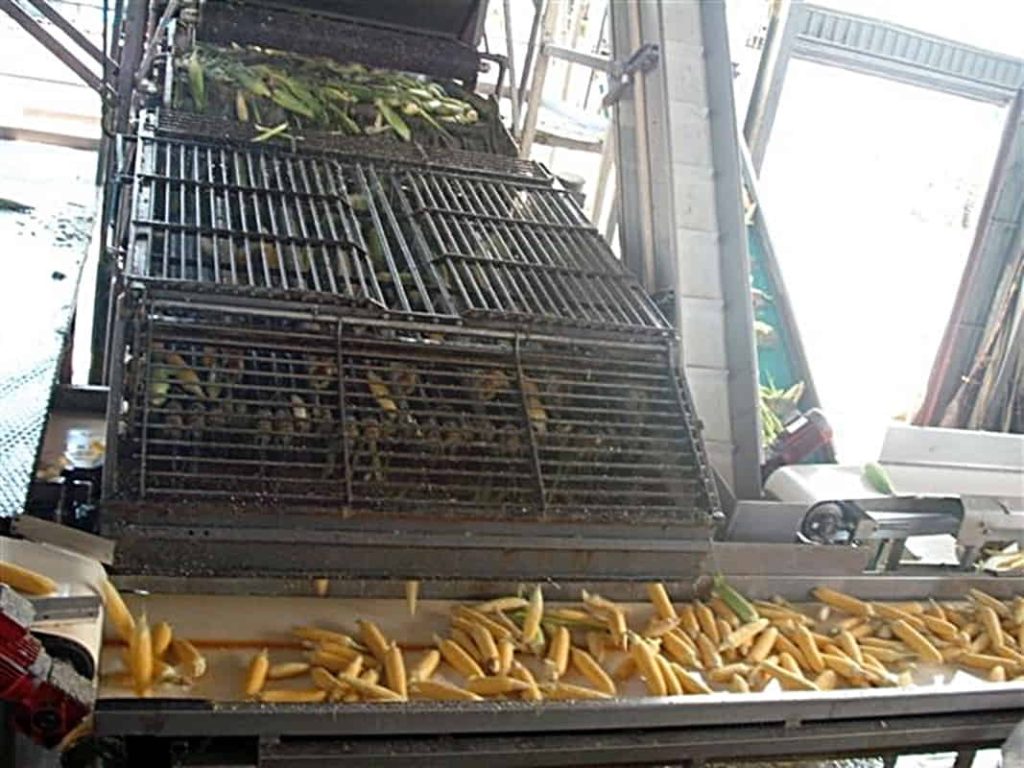

Corn Husker:

The task of the machine is to husker corn. The part of the machine is the dosing shaker, the receiving hopper, the dosing belt and the associated rack structure. The output of the machine is 8-14 tons per hour

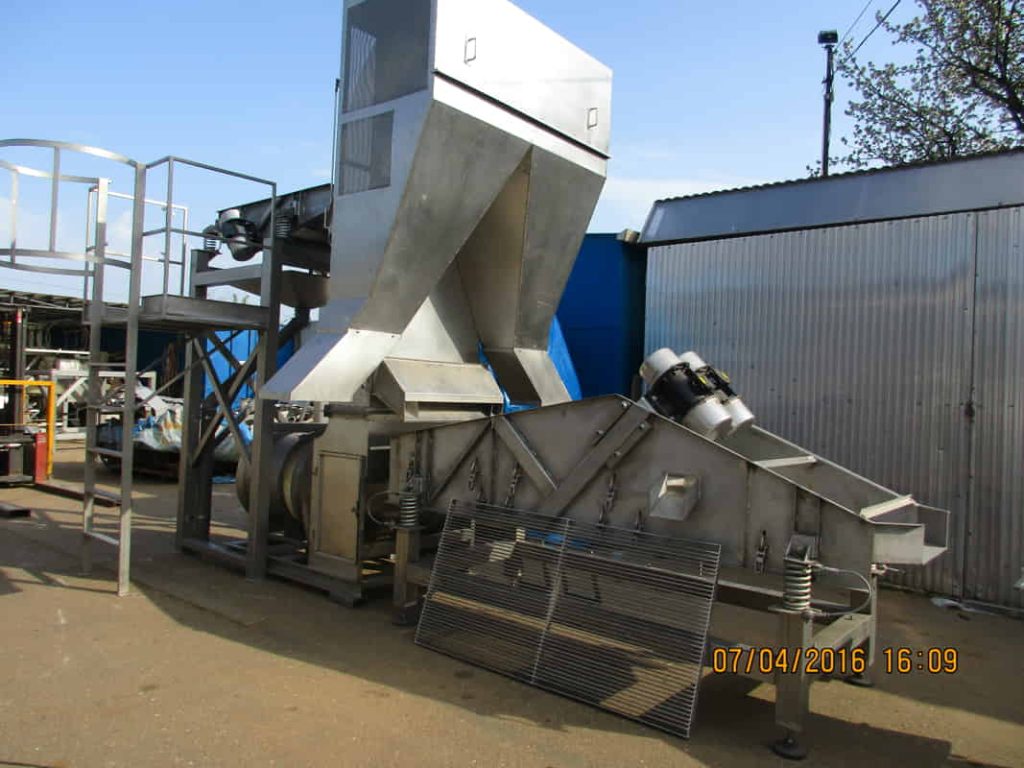

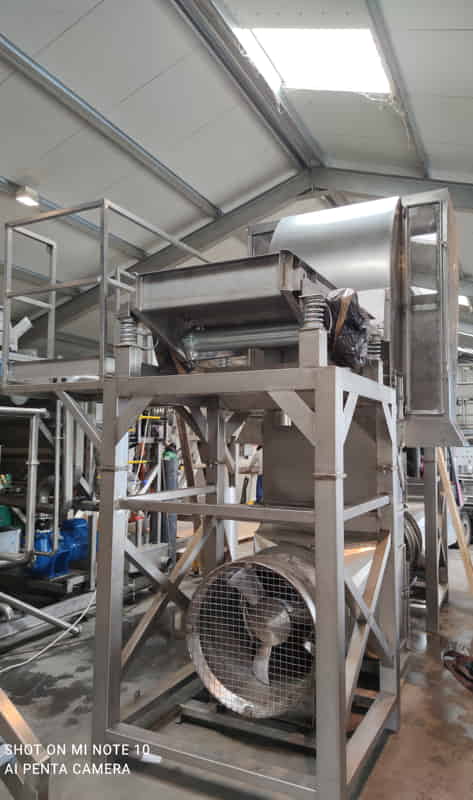

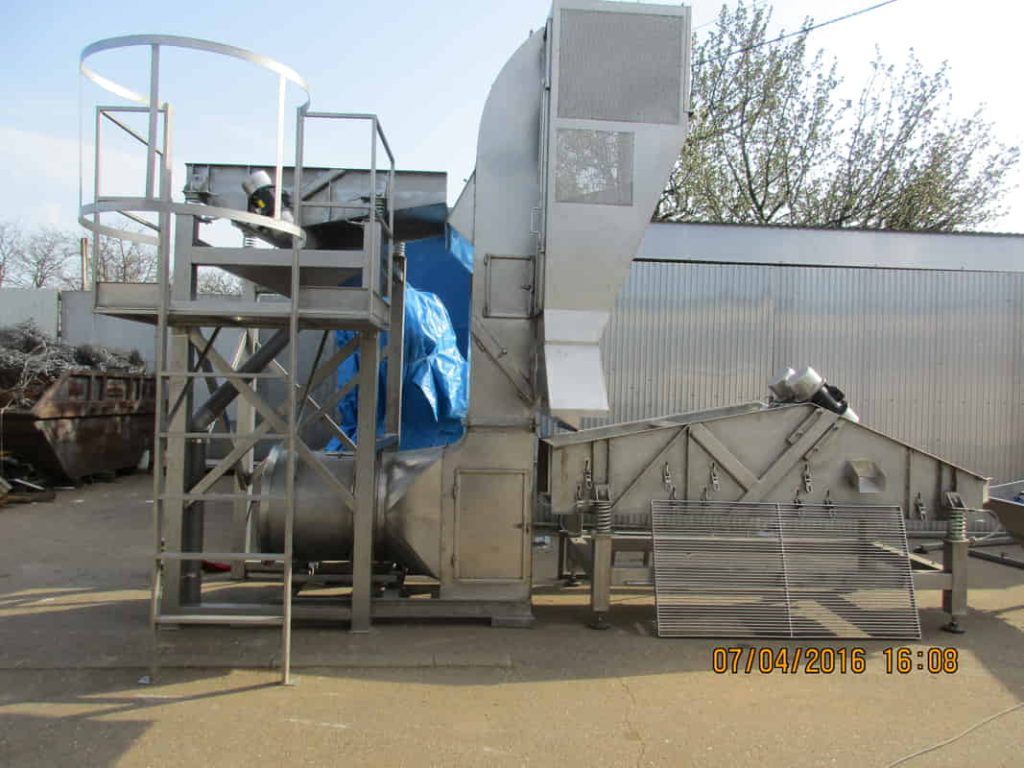

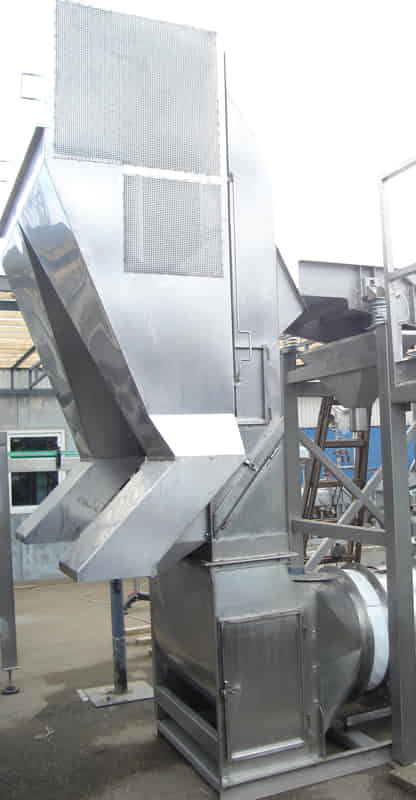

Air selector:

The air separator is suitable for the removal of impurities with low specific gravity and high air resistance from raw materials (peas, corn, etc.) in the canning and refrigeration industry. The air separator contains a vibrator table. Its performance is different, it can be between 5-15 tons/hour.

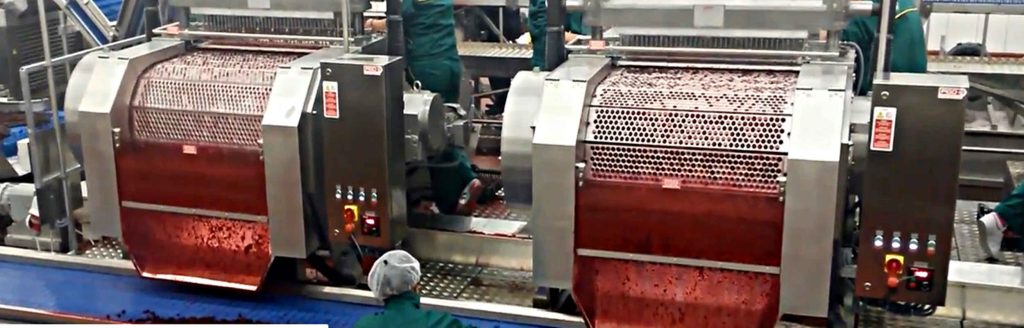

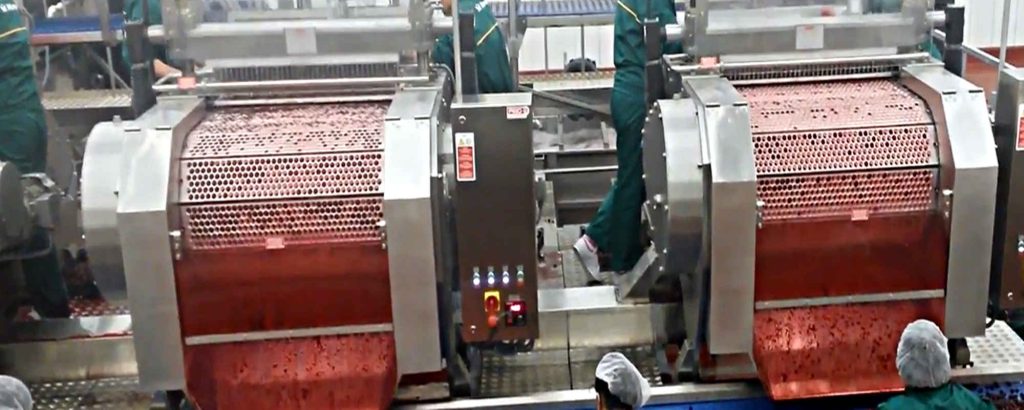

Seeder:

The task of the machine is to pit different fruits (cherries, plums, etc.), during which the seeded fruit is sent to the next technological machine, while the seeds are carried separately by belts placed under the machine. The machine has different capacities.



Calibration of cherry:

The task of the machine is to classify counties of different sizes. The machine is usually designed for two sizes of cherries. The smaller fruit falls into the rotating drum of the machine and is carried away by a conveyor belt. The larger size falls out at the end of the machine onto the next technological machine.

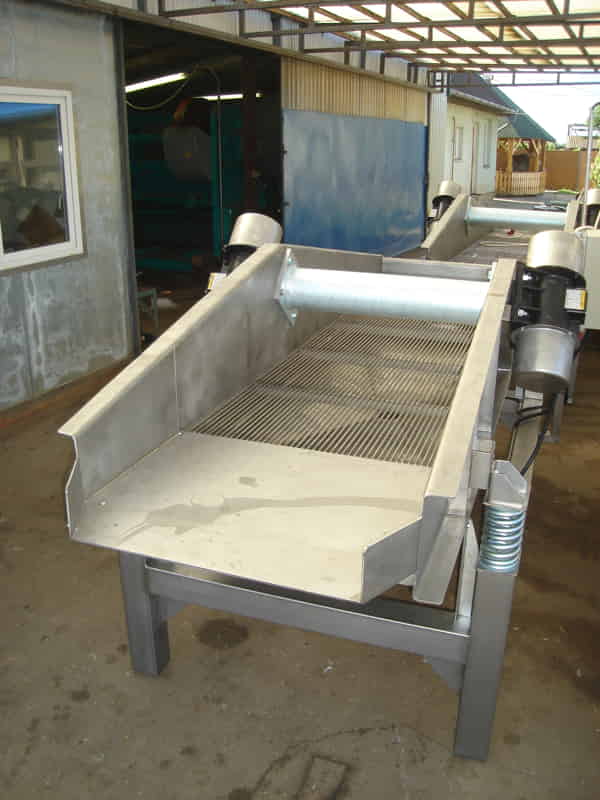

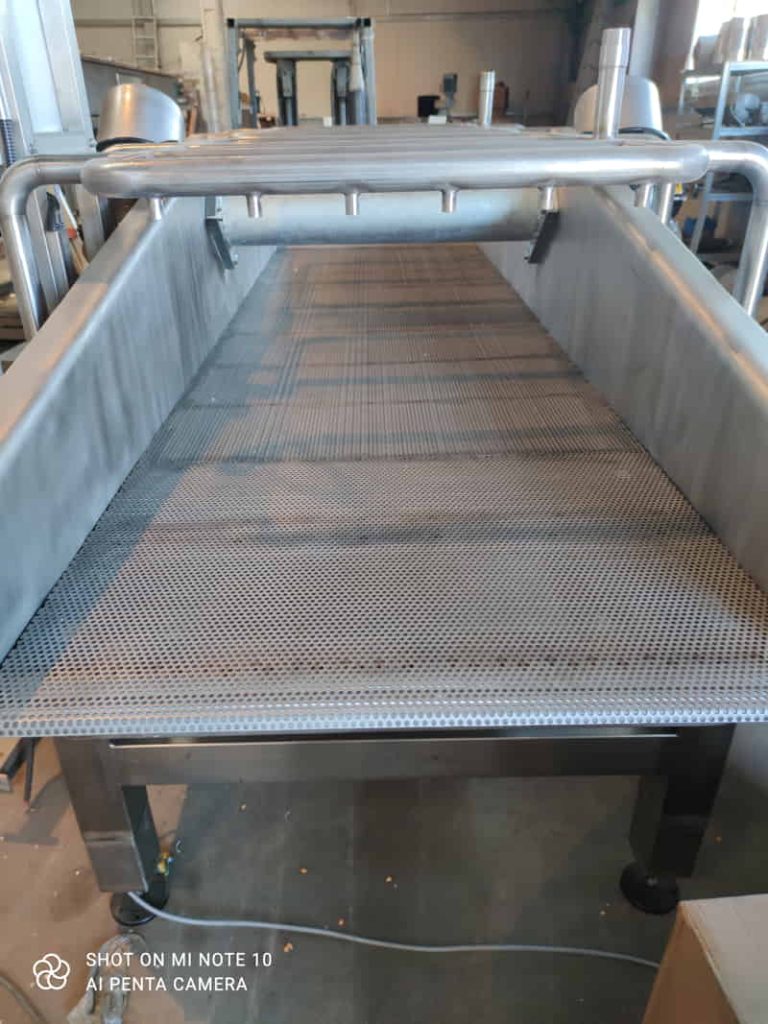

Vibration table:

Vibration table a very important role in the technological processing of the food industry, but especially in the refrigeration and canning industry. Its task is to arrange the individuals of various vegetables and smaller fruit varieties in a solid state to be processed in a plane, in a uniform layer thickness, to the next machine and equipment of the technological processing line. allowance. Its special task may also be the separation of water from the raw material, – surface water reduction – and waste separation. If the vibrator is equipped with a water jet, in that case the removal of smaller dirt, with this function, it also performs the task of washing and cleaning well.

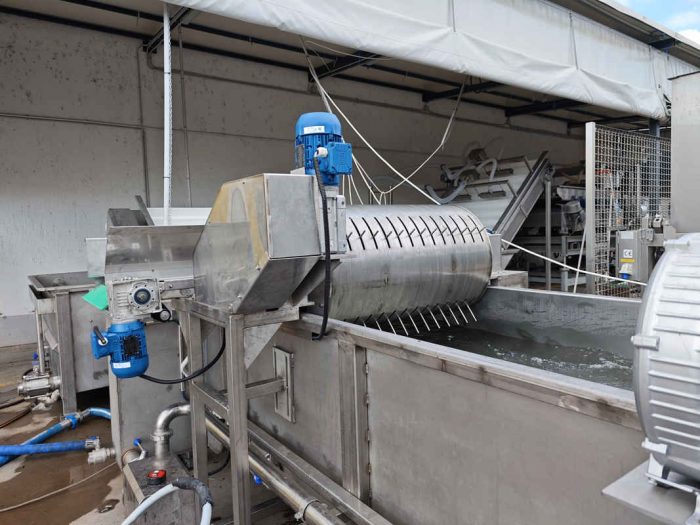

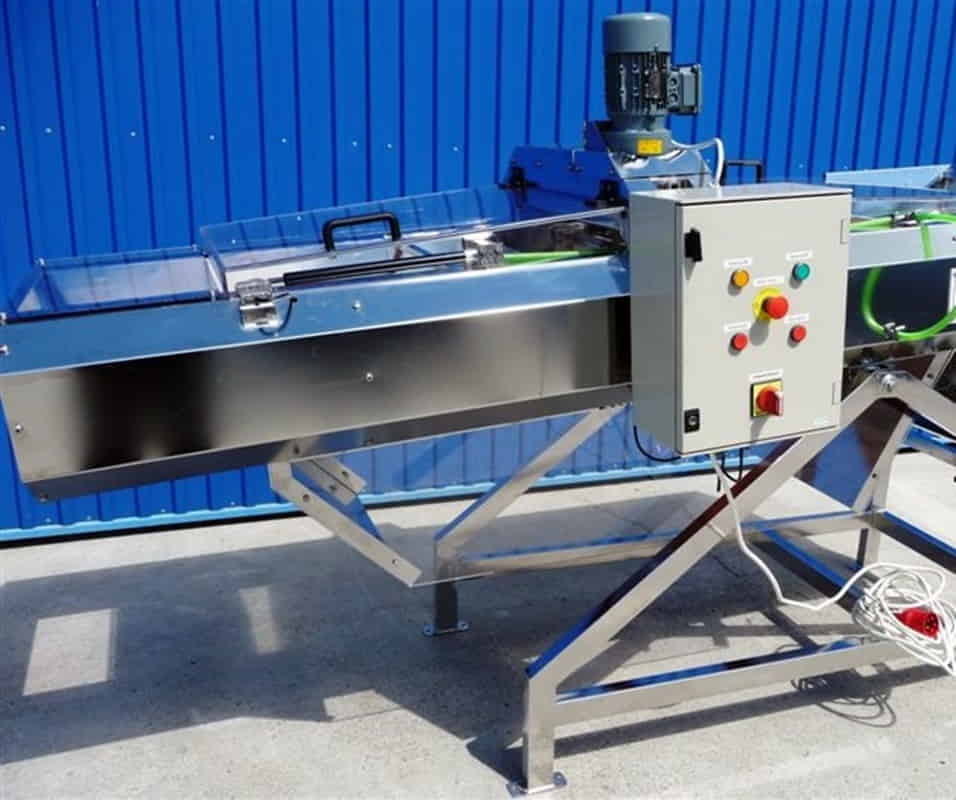

Stem ripper:

The stem ripper is used to remove the stems of various fruits (e.g. cherries, plums, currants, etc.). They have different performance.

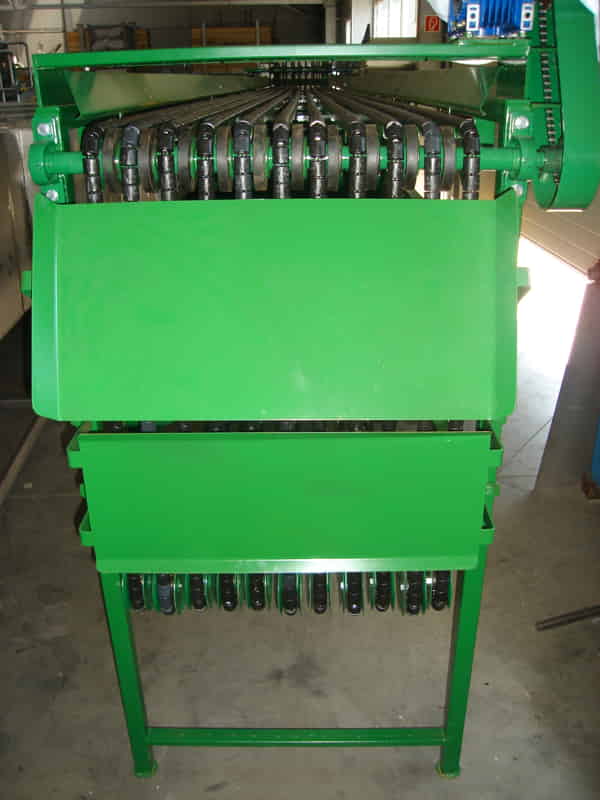

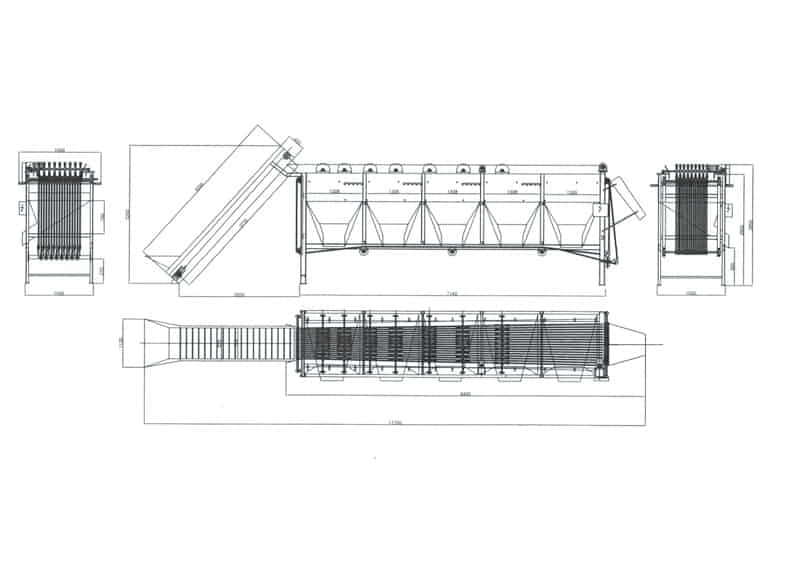

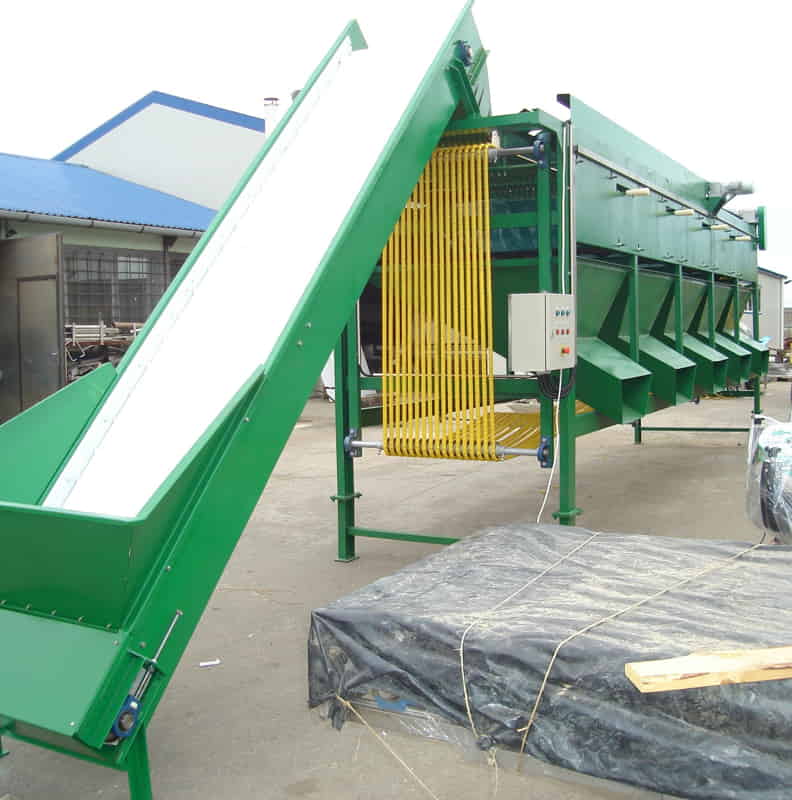

Calibration of cucumbers:

The calibration machine is used to grade cucumbers according to diameter. In the case of varieties in public cultivation, there is a fairly close relationship between diameter, length and weight, so the machine, through the classification according to diameter, also performs the classification according to weight, which is basically necessary for the creation of commercial items. The collection containers of the sorting machine can be used both for collecting in bags and crates.

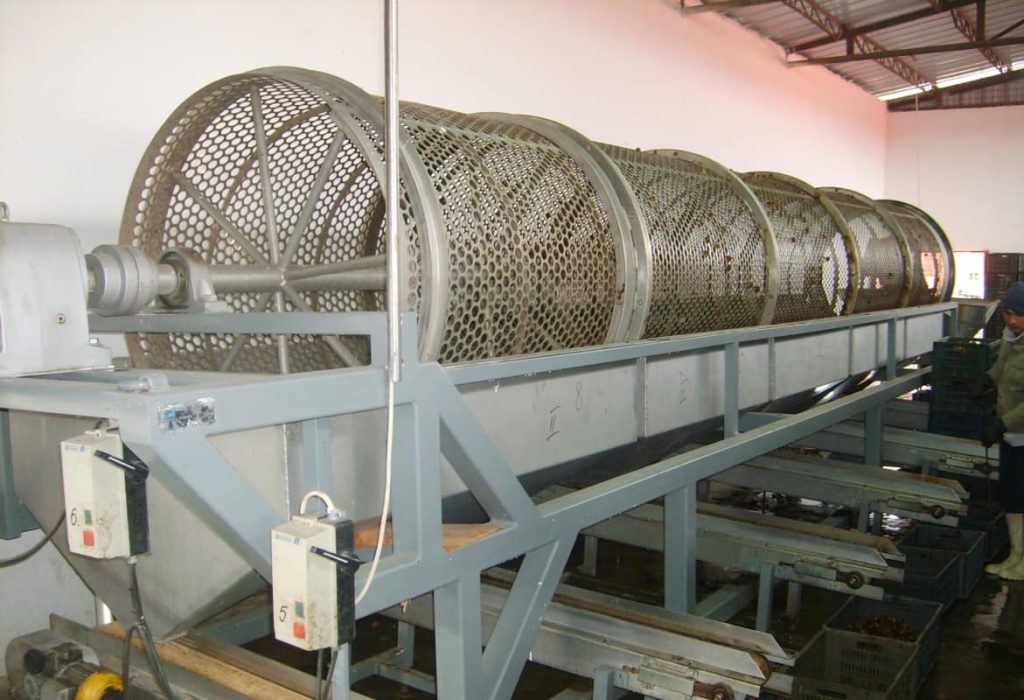

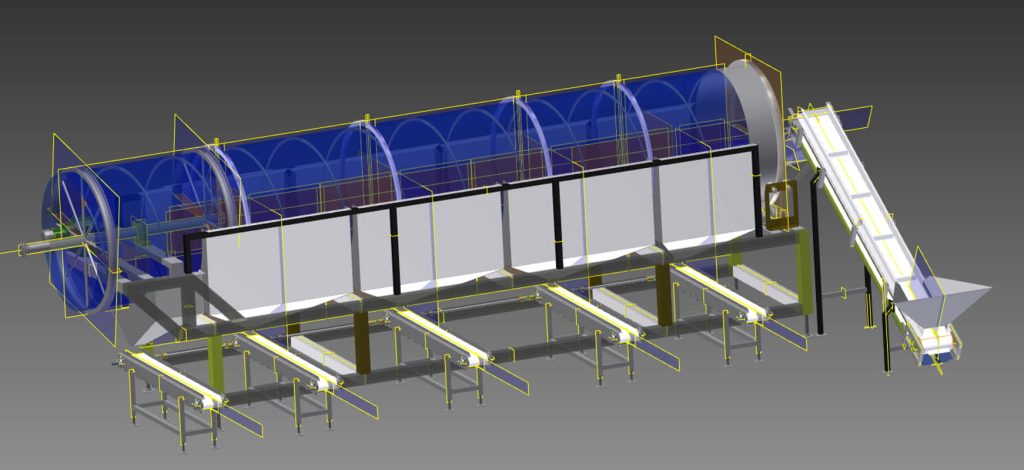

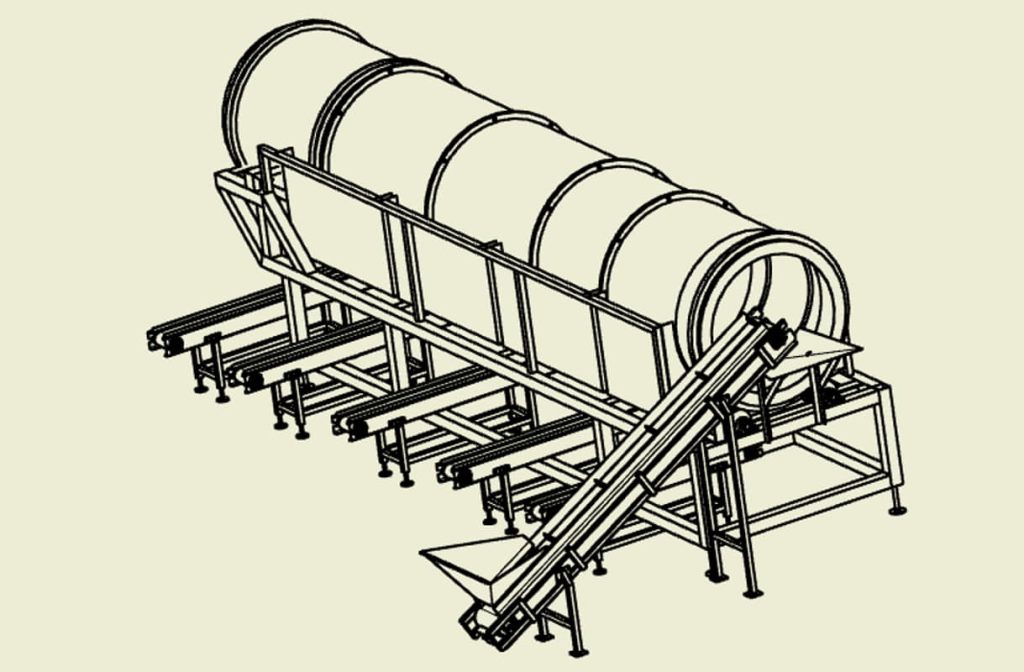

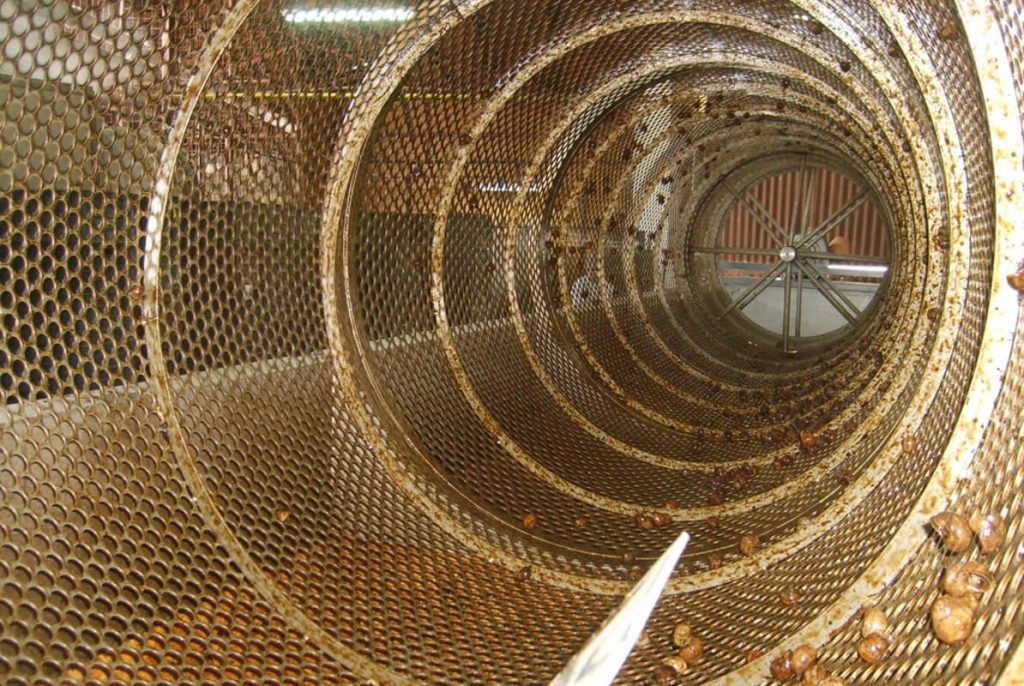

Snail Classifier:

The task of the machine is to classify and select snails. Based on the customer’s request, we compile the size in which the snail housings are classified and selected



Sterilization machines

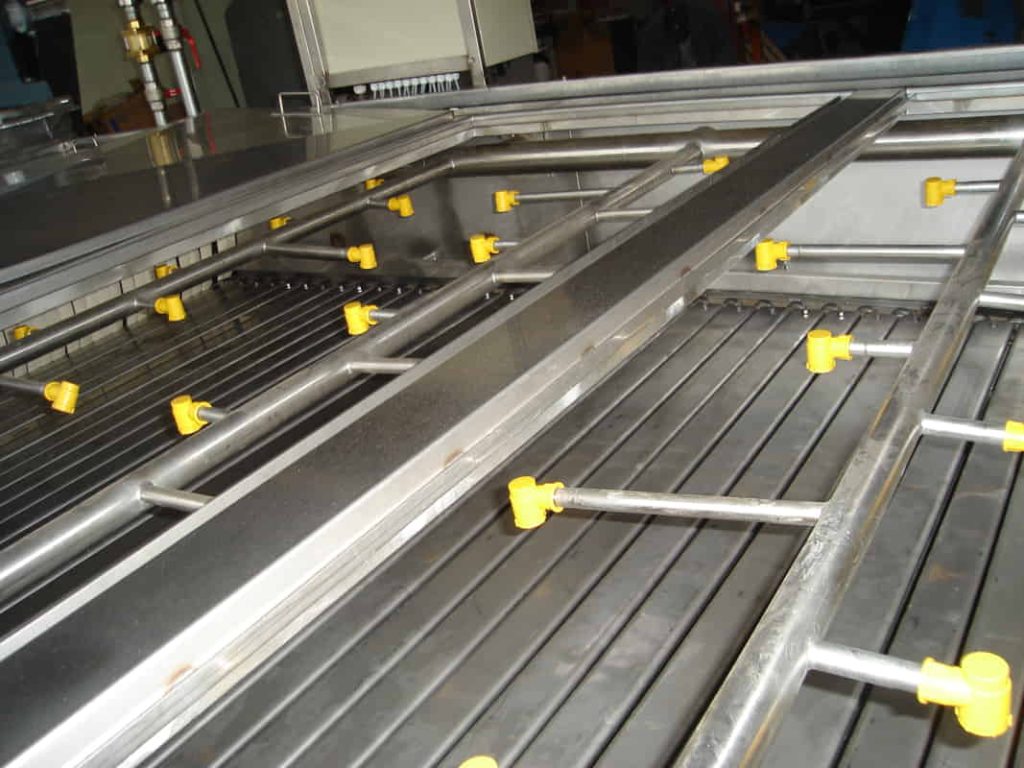

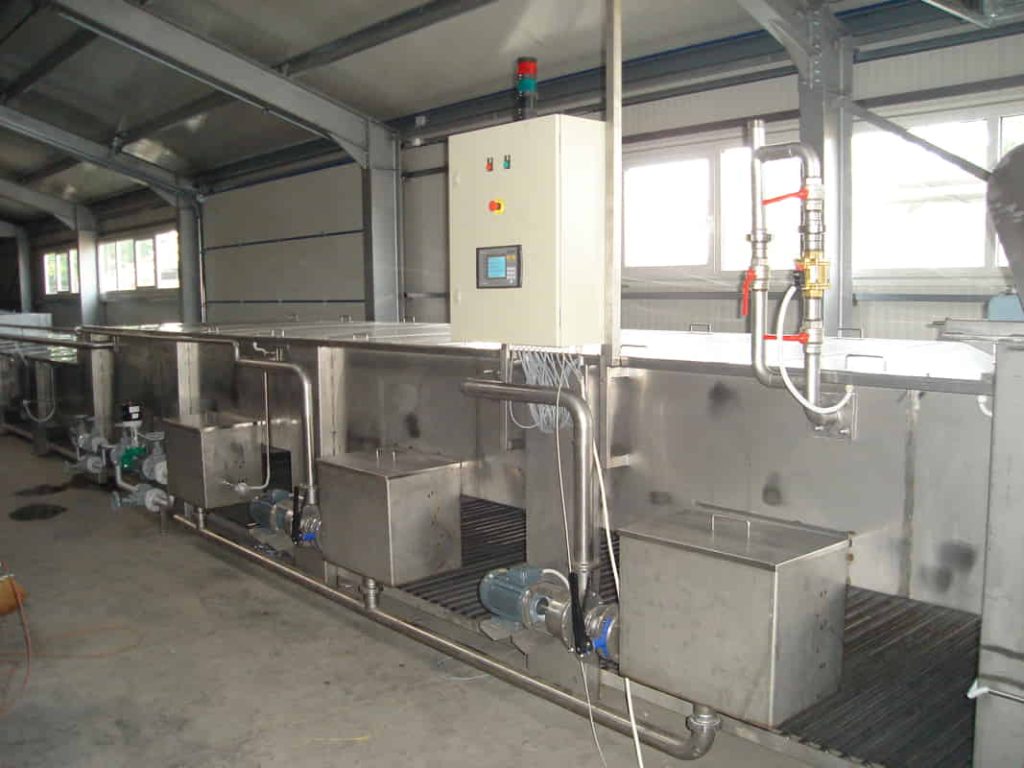

Alpa continuous spray pasteurizer:

The members of the PF type module spray pasteurizer family are suitable for pasteurizing goods packed in large bottles, bottles, and boxes below 95 C . Its operation is continuous. Pasteurization and cooling takes place in a spray system. Its performance varies widely depending on the size of the roll and the pasteurization time. The machine can be switched to the cooling mode and its independent pasteur modules make it suitable for multi-purpose use with optimal performance. The length of the machine must be at least 8 meters. The parts of the machine are the feeding buffer table and the three-track dispensing belt located at the end of the machine. The equipment is completely made of stainless steel. The machine is equipped with a PLC automatic controller, where the pasteurization time for the given product can be set and saved for later use.



Product transport machines

Auger sugar conveyor:

The sugar application auger is used in fruit and vegetable processing lines during the processing of juice, syrup, etc. to make the sugar syrup, add the sugar to the syrup cooking pot. The application auger is located on a transport trolley made of a closed section, so it is possible to supply several syrup cooking vessels with a sugar application. Two of the four wheels are self-aligning and two can be braked. It is made in stainless steel.

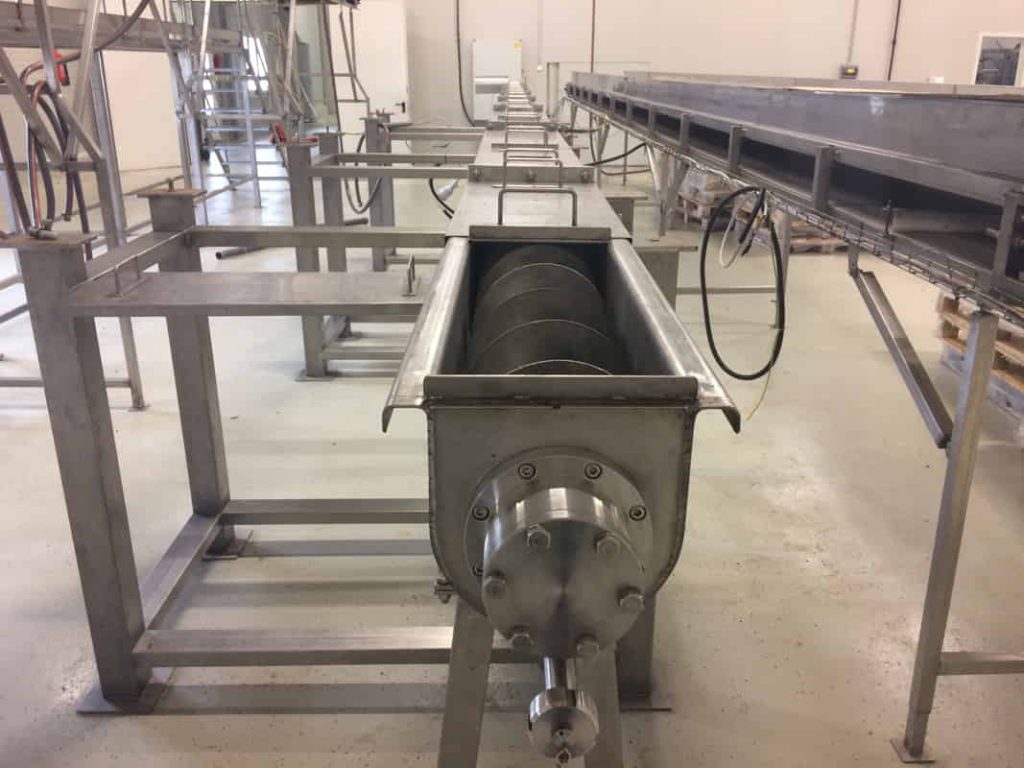

Auger conveyor:

Its task is to transport or transfer different products to the next technological machine. They are used to transport fruit seeds, or to transport pulpy, soft materials and meat. It is made in stainless steel.

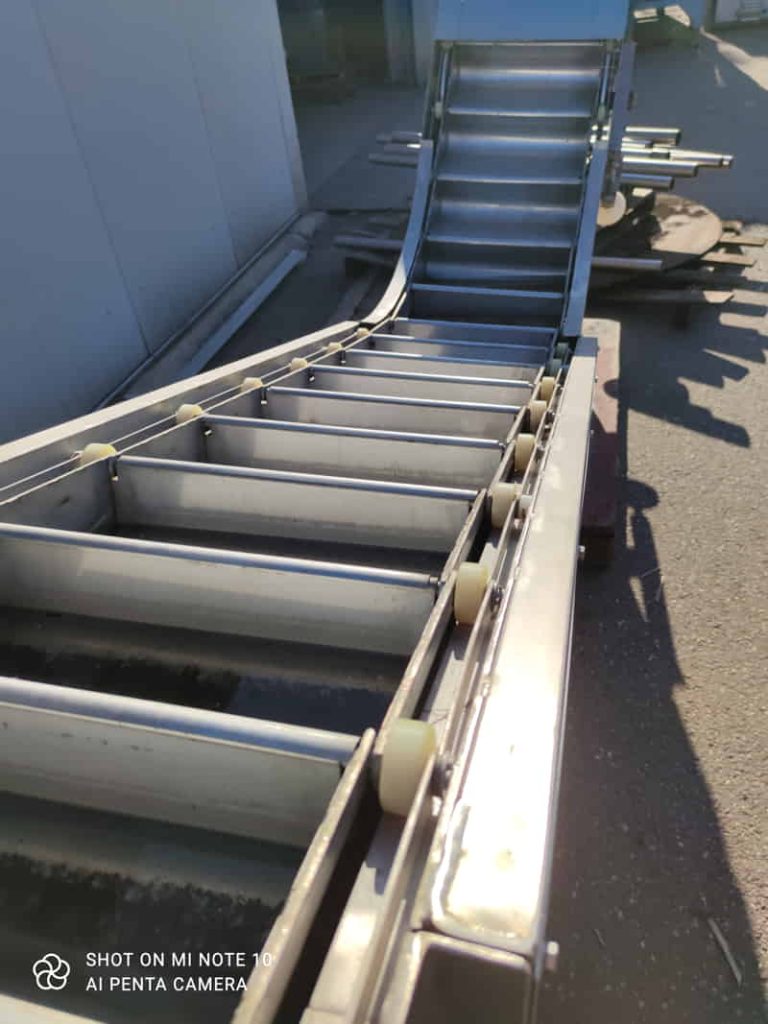

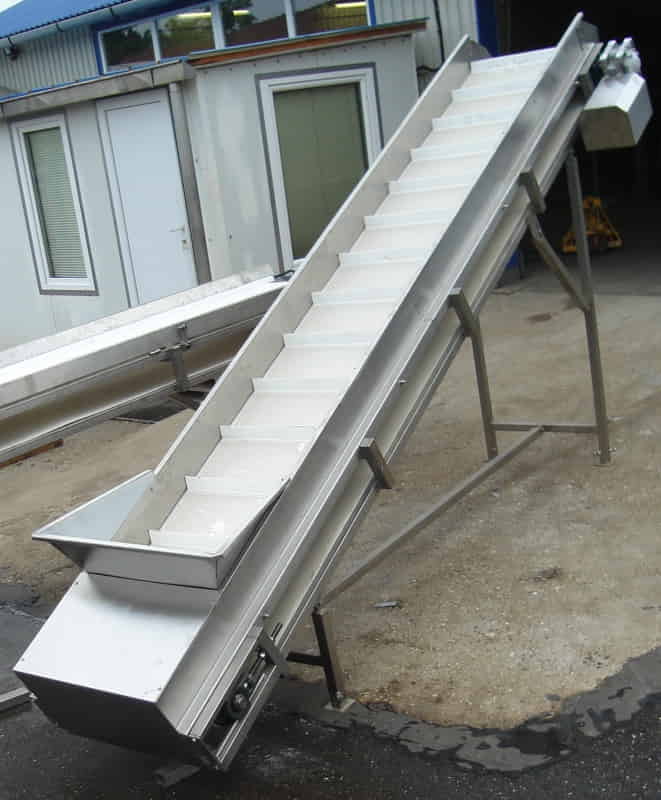

Bucket elevators:

Bucket elevator is to bridge the differences in height between the individual technological devices during the technological processing of the solid, different types of vegetables and fruits to be processed. In practice, this bridging means in almost all cases the transfer of the raw material or product to be processed from a lower technological level to a higher technological level. Bucket elevators can be installed anywhere in the technological production line. They can be made with a belt made of PVC or plastic and with a paddle.

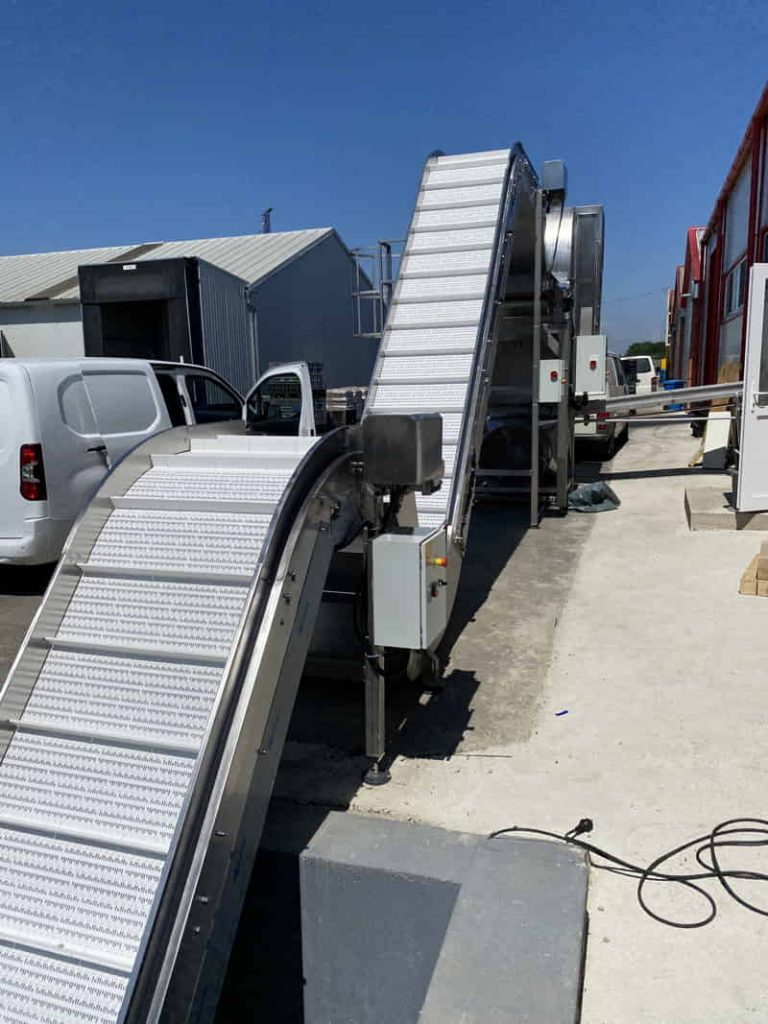

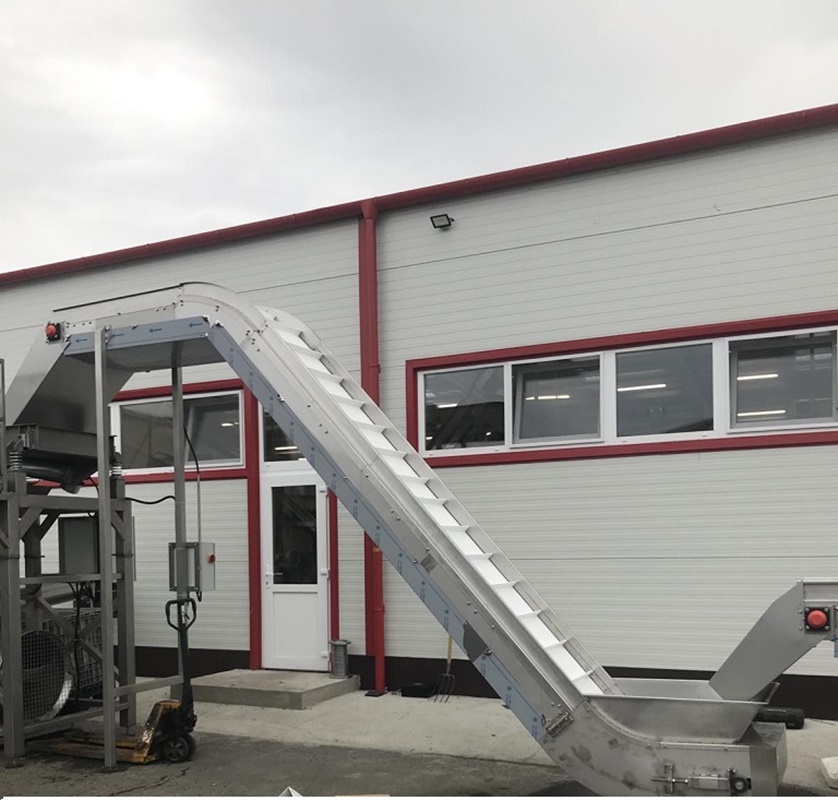

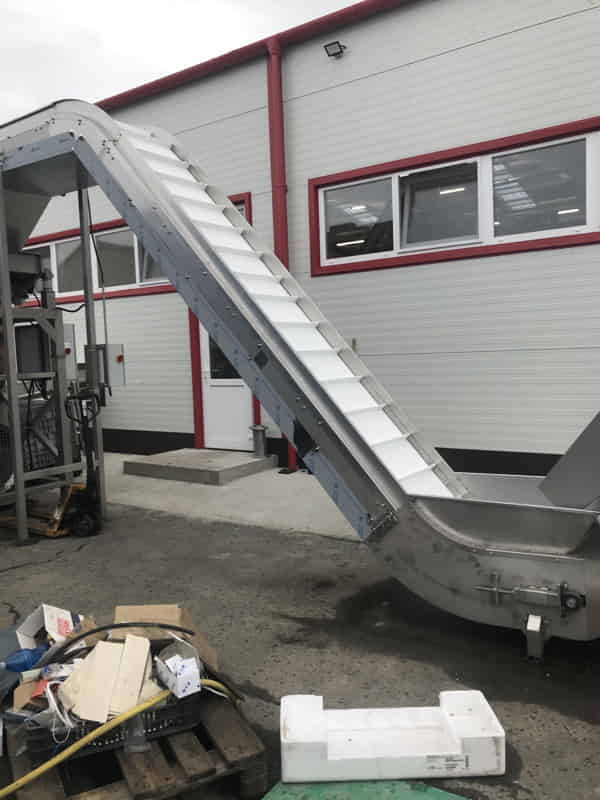

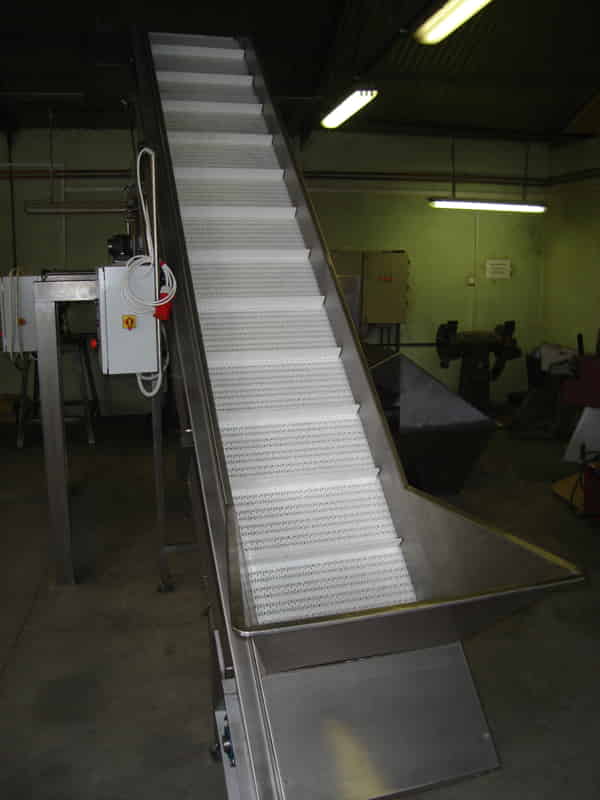

Swan-neck elevator:

The task of the Swan-neck elevator is to bridge the height differences between the individual technological equipment during the technological processing of the solid, different types of vegetables and fruits to be processed. In almost all cases, this bridge means bringing the raw material to be processed, the product, from a better technological level to a higher technological level. Elevators can be installed anywhere in the technological production line. It is made with a belt with plastic members and a paddle.

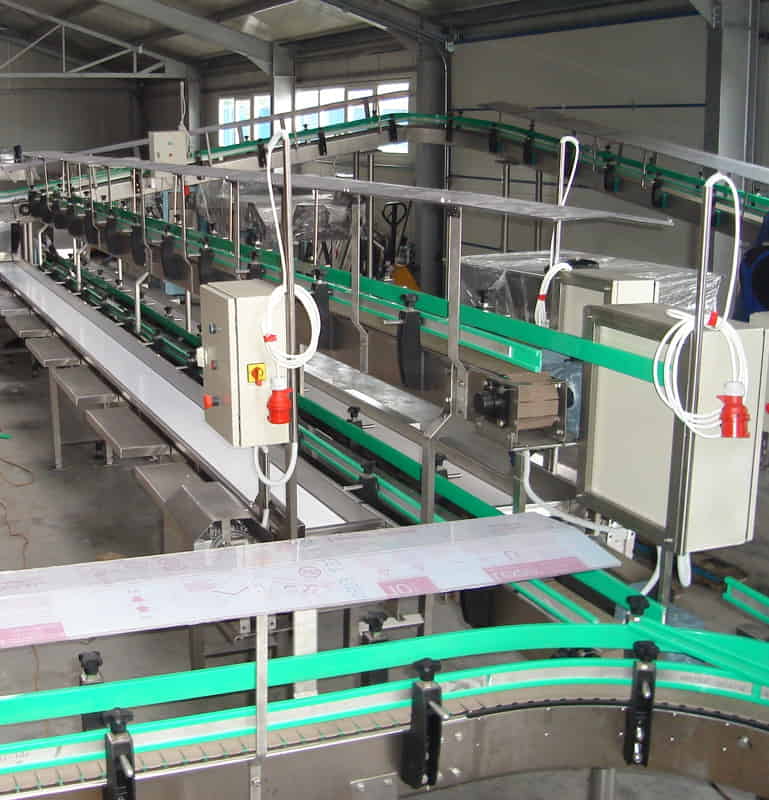

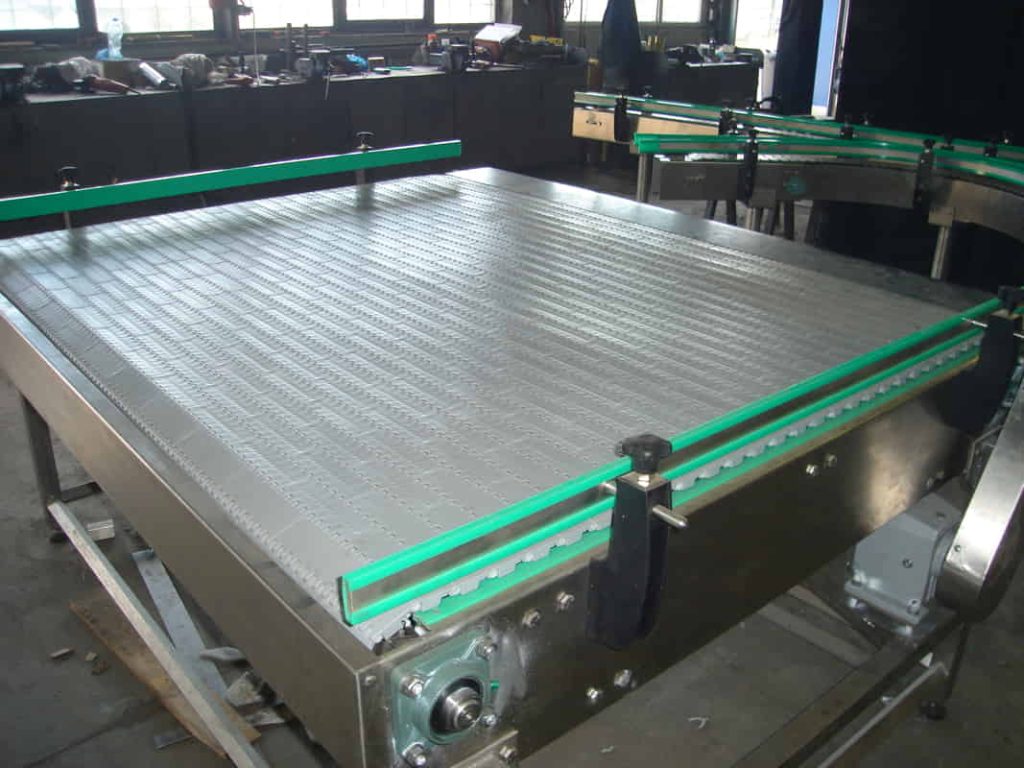

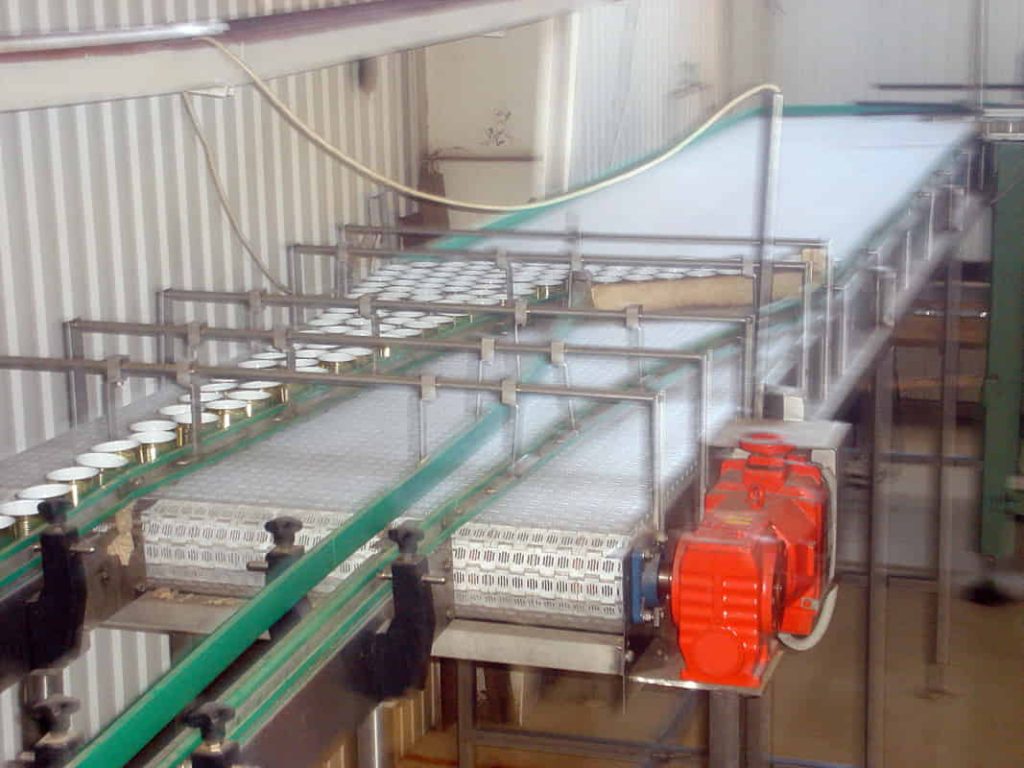

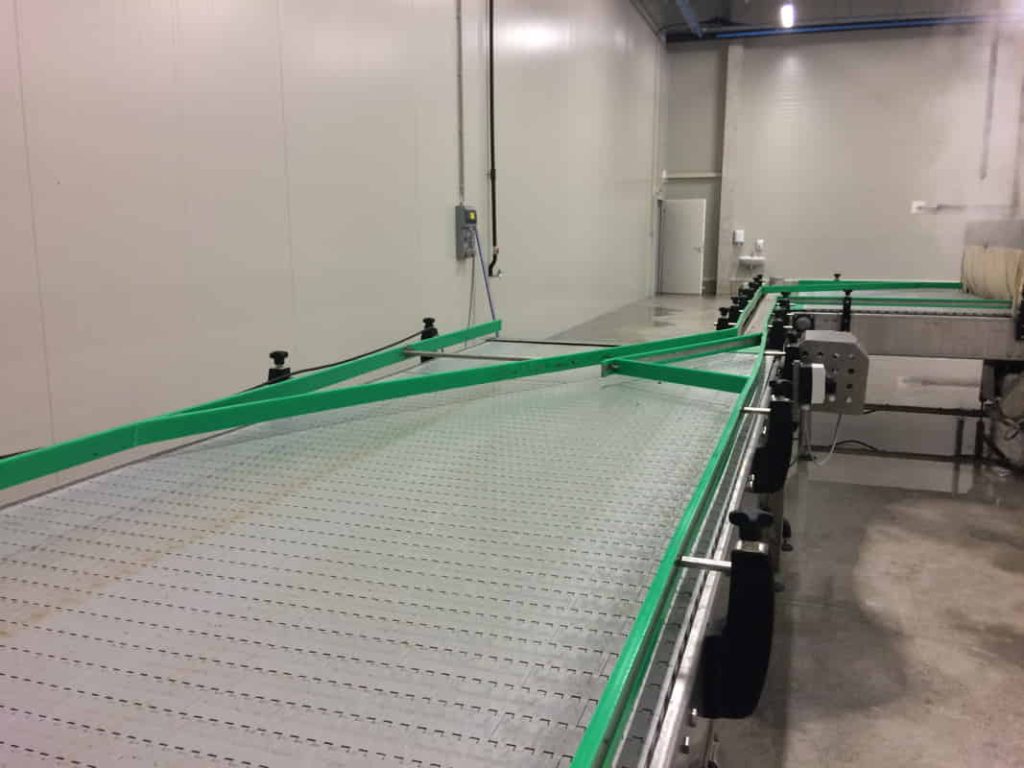

Puffer table:

The task of the buffer table is to continuously transport packaging materials of different sizes (canning bottles, metal cans, beverage bottles) in accordance with the requirements and regulations of the processing technology, and to collect them in front of various very important technological machines, so-called buffering. The collection and buffering is necessary so that the loss of production due to minor technical errors occurring at individual technological machines does not occur at the leading machines of the technological line, and ultimately the capacity utilization of the technological line is maximized. The buffer table is made with a belt with plastic members.



Bucket elevator:

Its task is to transport various vegetables and fruits from one technological machine to another technological machine means transport between machines at different levels. The equipment is made of stainless steel.

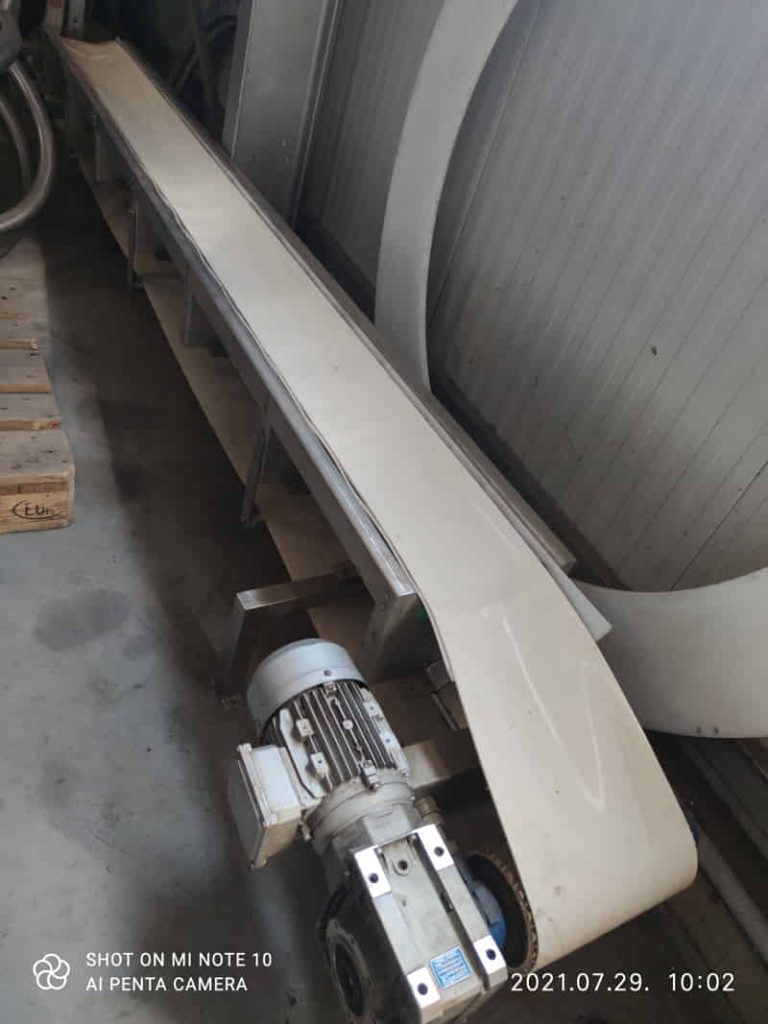

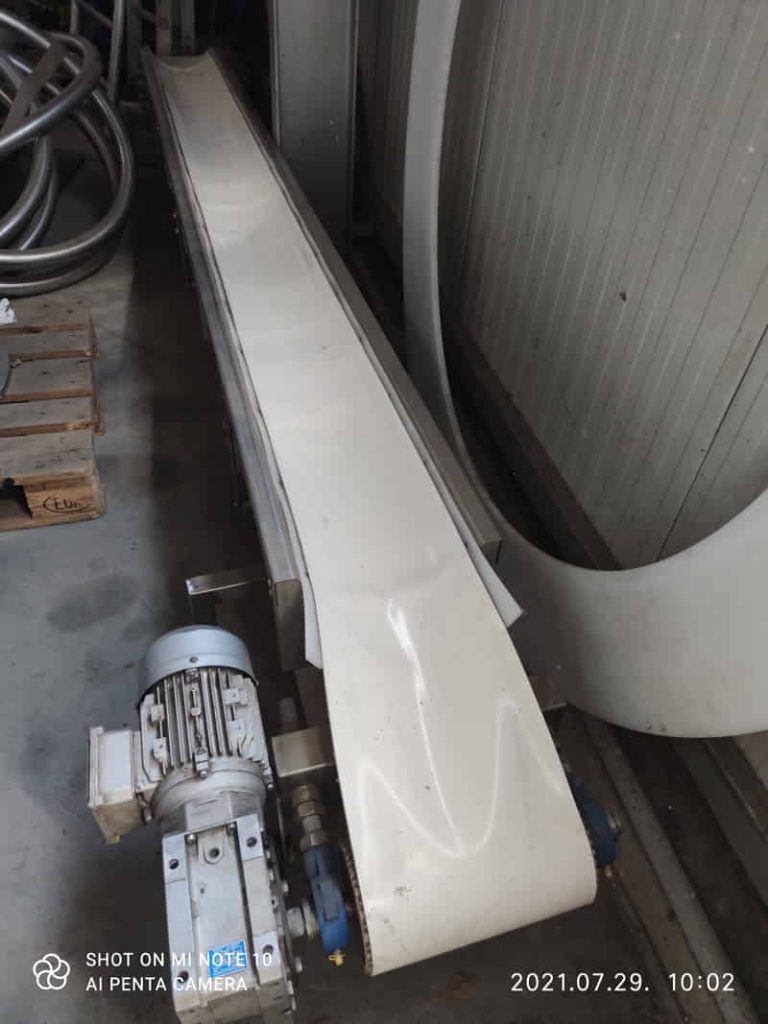

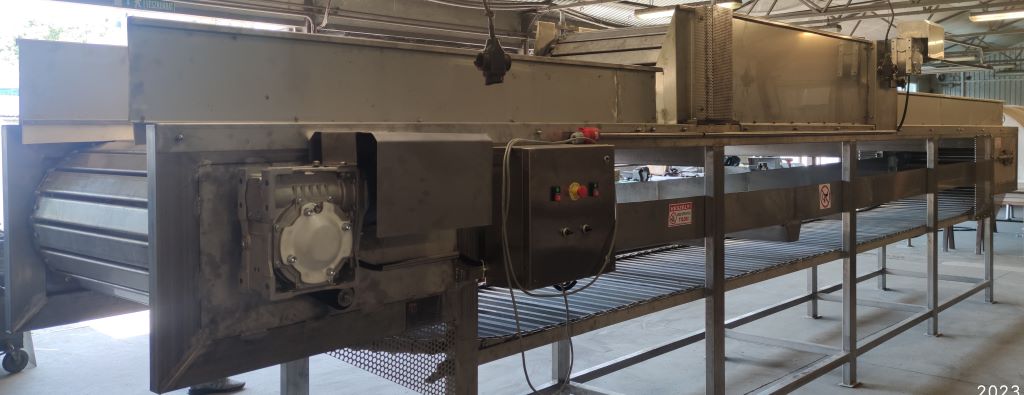

Conveyor belt machine:

Its task is to provide the opportunity to manually remove individuals from the solid state of different types of vegetables and fruits to be processed, as well as to transport the products from one technological machine to the next. Conveyor belts can be installed anywhere in the technological production line. The belt can be made of PVC or plastic.
